79HM Permalloy Magnetic Alloy Rod

Permalloy Soft Magnetic Alloy Rod Ni79mo4 is an excellent product designed and produced by our company, 79hm. This product is highly efficient and reliable, with outstanding characteristics and features that distinguish it from other magnetic alloy rods in the market.

At 79hm, we pride ourselves on offering top-quality products that are designed to meet the needs of our customers. Our Permalloy Soft Magnetic Alloy Rod Ni79mo4 is no exception, and we are confident that it will provide you with the results you need for your business. Here are some of the key features of our product that make it stand out from the rest:

1. High Magnetic Permeability

Our Permalloy Soft Magnetic Alloy Rod Ni79mo4 is designed with high magnetic permeability, meaning that it is capable of conducting magnetic energy efficiently. This characteristic makes it an excellent choice for applications that require high magnetic flux density, allowing it to work effectively with electromagnetic fields.

2. Low Coercivity

Another essential feature of our product is its low coercivity, which refers to the amount of magnetic field strength required to demagnetize the material. Our alloy rod requires relatively low fields to demagnetize, making it ideal for applications requiring rapid switching.

3. Low Hysteresis Loss

Our Permalloy Soft Magnetic Alloy Rod Ni79mo4 has low hysteresis loss, which refers to the energy loss that occurs when the magnetization of the material changes. This feature makes our product more efficient, allowing it to conserve energy and minimize heat production during operation.

4. High Saturation Induction

Our alloy rod has a high saturation induction, meaning it can carry a high magnetic field without becoming magnetized. This feature is critical for applications that require high magnetic energy storage, such as transformers and inductors.

5. Excellent Corrosion Resistance

Our product is manufactured with materials that are resistant to corrosion, making it ideal for use in environments prone to corrosion. This feature ensures that our product remains durable, efficient and does not degrade over time, even when exposed to harsh conditions.

Conclusion

In conclusion, Permalloy Soft Magnetic Alloy Rod Ni79mo4 is a top-quality product manufactured by 79hm. The product features high magnetic permeability, low coercivity, low hysteresis loss, high saturation induction and excellent corrosion resistance, making it one of the best alloy rods in the market.

We are confident that our product will provide you with the results you need for your business. So, if you are looking for a reliable, efficient, and durable magnetic alloy rod, Permalloy Soft Magnetic Alloy Rod Ni79mo4 is the perfect choice for you. As a manufacturer, we are committed to providing top-quality products that satisfy our customers' needs. Contact us today, and we will be happy to answer any questions you may have about our products.

Products Description

Ni79Mo4 iron-nickel alloy is a 79-80% nickel alloy, a high saturation magnetic induction soft magnetic alloy, with high initial permeability, maximum permeability and low coercivity. The saturation magnetic induction intensity of 1J79 is greater than 0.75T. 1J79 alloy has good anti-rust performance and processing performance, and can be used to make components with extremely precise shapes and sizes.
79hm Permalloy Chemical Compositions%

Ni	78.5~80.0	Fe	Bal.	Mn	0.6~1.1	Si	0.3~0.5
Mo	3.8~4.1	Cu	≤0.2
C	≤0.03	P	≤0.02	S	≤0.02



Ni79Mo4 Mechanical Properties

Basic physical constants and mechanical properties of the alloy:
Density: γ = 8,6 g / cm3;
Electric resistivity: ρ = 0,55 ohm mm2 ? / m;
The temperature of the Curie point: Θs = 430 ° C;
Saturation magnetostriction: λS = 2 ? 106;
Brinell hardness of 210/120 HB;
Ultimate: RM = 1030/490 MPa;
Yield strength: σ0,2 = 980 145 MPa;
Modulus of elasticity E = 210 kN / mm2;
Elongation: δ5 = 3/50%;
Relative compression: φ = -%.

Material magnetic properties
Ni79Mo4	Initial permeability	Maximum permeability			Coercivity	Saturation magnetic induction
Cold rolled strip/plate Thickness, mm	μ0.08/ (mH/m)		μm/ (mH/m)	Hc/ (A/m)			BS/ T
	≥			≤
0.01 mm	17.5		87.5	5.6			0.75
0.1~0.19 mm	25.0		162.5	2.4
0.2~0.34 mm	28.0		225.0	1.6
0.35~1.0 mm	30.0		250.0	1.6
1.1~2.5 mm	27.5		225.0	1.6
2.6~3.0 mm	26.3		187.5	2.0
Cold drawn wire
0.1 mm	6.3		50	6.4
Bar
8-100 mm	25		100	3.2

Ni79Mo4 Heat treatment method

Annealing medium	Dry hydrogen (the dew point is not higher than -40℃) or vacuum, the residual pressure is not more than 0.1Pa
Heating temperature and speed	1100~1150℃
Holding time/h	3~6
Cooling rate	Cool to 600℃ at a rate of 100 ~ 200 ℃/h, and quickly cool to 300℃ and get out of the oven


 Ni79Mo4 Supply form and specification

Alloy grade	Form	Size
Ni79Mo4	Wire	D= 0.1~8mm
Ni79Mo4	Strip	W= 8~390mm	T= 0.3mm
Ni79Mo4	Foil	W= 10~100mm	T= 0.01~0.1mm
Ni79Mo4	Bar	Dia= 8~100mm	L= 50~1000mm



1J79 (Soft magnetic alloy)
(Common Name: Ni79Mo4, E11c, malloy, permalloy, 79HM)

High permeability soft magnetic alloy
High permeability soft magnetic alloy mainly nickel base alloy, nickel content is over 75%, this kind of alloy has the very high initial permeability and permeability.Often referred to as permalloy, also known as the early high magnetic conductivity alloy.They all have good processing performance, can be rolled into thin strip.Alloy is suitable for application in the ac weak magnetic field.Such as TV and instrumentation in various audio transformer, the high accuracy bridge transformer, transformer, magnetic shielding, magnetic amplifier, magnetic modulator, audio head, choke, precision electric meter of the piece and piece, etc

79HM widely used in radio-electronic industry, precision instruments, remote control and automatic control system.

Products parameters





Soft magnetic alloys are a class of alloys with high permeability and low coercivity in weak magnetic fields. According to the different elements that make up the alloy, it can be divided into electromagnetic pure iron (industrial pure iron), iron-silicon alloy, iron-nickel alloy, iron-aluminum alloy, iron-silicon-aluminum alloy and iron-cobalt alloy, etc.

1J06,1J12,1J17,1J18,1J22,1J30,1J36,1J38,1J46,1J50,1J51,1J54,1J76,1J77,1J79,1J80,1J85,1J87

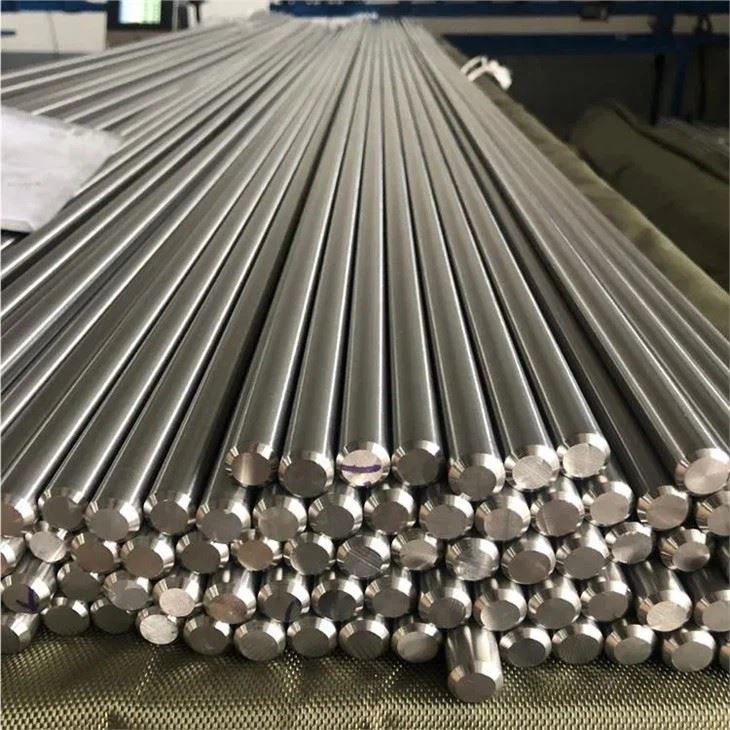

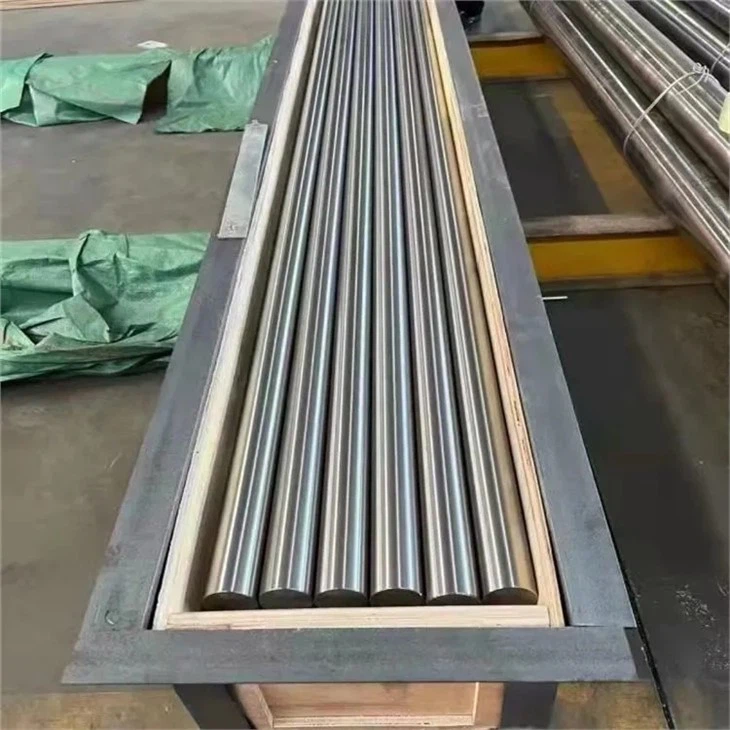

Product Picture

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary
