1J85 Permalloy 80 Magnetic Alloy

Introduction

As a manufacturer of high-quality magnetic alloys in China, we are proud to present to you our new product, the 1j85 Permalloy 80 Soft Magnetic Alloy Ni80mo5. Our expertise in the field of magnetic materials makes us one of the most reliable and innovative manufacturers currently on the market, and we believe that our product can provide many benefits to merchants outside of China. In this product introduction, we will discuss the various aspects and features of our product that will help entice customers and set us apart from our competitors.

1. What is Permalloy 80?

Permalloy 80 is a nickel-iron alloy that contains about 80% nickel and 20% iron. This alloy is known for its unique magnetic properties, which makes it ideal for use in magnetic-core components such as inductors and transformers. The alloy is a preferred material for many applications which involves high-performance magnetic properties combined with low coercive fields, high magnetic permeability, and low hysteresis loss.

2. Why Choose 1j85 Permalloy 80 Soft Magnetic Alloy Ni80mo5?

The 1j85 Permalloy 80 Soft Magnetic Alloy Ni80mo5 is a high-quality material that is specifically designed to meet the needs of merchants outside of China. Our product contains a small percentage of molybdenum (Mo) that offers superior magnetic properties and reduces the risk of magnetic aging. The addition of molybdenum helps to improve the strength and durability of the alloy, making it suitable for use in demanding applications.

Our product offers the following unique features that make it stand out from our competitors:

• High magnetic permeability – our alloy has a high magnetic permeability that allows it to carry magnetic flux more efficiently.

• Low coercive field – our product has a low coercive field, which makes it easy to magnetize and demagnetize.

• Low hysteresis loss – our alloy has low hysteresis loss, which means that it can effectively convert magnetic energy without losing energy in the process.

• Resistance to magnetic aging – our alloy has superior resistance to magnetic aging, ensuring that it maintains its magnetic properties for a longer period of time.

3. Applications of 1j85 Permalloy 80 Soft Magnetic Alloy Ni80mo5

The 1j85 Permalloy 80 Soft Magnetic Alloy Ni80mo5 is versatile and can be used in a variety of applications. Some of these applications include:

• Transformers - Permalloy 80 is widely used in transformers due to its high magnetic permeability, low coercivity, and low hysteresis loss.

• Inductors - our alloy is also ideal for use in inductors because of its high magnetic permeability and low coercive field.

• Magnetic shielding - Permalloy 80 is excellent for magnetic shielding applications where there is a need to protect electronic devices from stray magnetic fields.

• Electrical equipment - our alloy is used in various electrical equipment, such as magnetic sensors, relays, and magnetic amplifiers.

4. Quality and Certification

At our manufacturing facility, we guarantee the highest quality standards for our products. Our 1j85 Permalloy 80 Soft Magnetic Alloy Ni80mo5 is quality-tested to ensure it conforms to all relevant international standards. We have also earned several certifications for our products, including ISO 9001, providing our customers with peace of mind that they are purchasing a reliable product.

Conclusion

In conclusion, our 1j85 Permalloy 80 Soft Magnetic Alloy Ni80mo5 is a high-quality product that offers superior magnetic properties and reliability. Its unique combination of magnetic permeability, low coercive field, low hysteresis loss, and resistance to magnetic aging make it ideal for a wide range of applications, including transformers, inductors, and magnetic shielding. Our commitment to quality ensures that our product will consistently meet international standards, and our certifications prove our ongoing dedication to excellence. For merchants outside of China looking for magnetic materials of the highest quality, choose 1j85 Permalloy 80 Soft Magnetic Alloy Ni80mo5.

Products Description

Ni80Mo5  Permalloy refers to an iron-nickel alloy with a wide range of nickel content, ranging from 35% to 90%. The biggest feature of Permalloy is its high magnetic permeability in weak magnetic fields. Their saturation magnetic induction intensity is generally between 0.6-1.0T.

1J85 alloy is smelted in a vacuum induction furnace. After being cast into a steel ingot, it is hot forged into a slab, then after hot rolling, pickling, and surface finishing, it is cold rolled into a finished strip or forged into the required bar. Most of these alloys are said to be used under alternating magnetic fields. They are mainly used for high-conductivity yoke irons, sensitive relays, low-loss micromotors, low-power power transformers, pulse transformers, transistor switches, magnetic amplifiers, magnetic modulators, and sensitive signals. Input and output transformers, magnetic sensors of aviation magnetic heading instruments, magnetic sensitive components in magnetic measuring instruments, moving and stators in precision electric meters, magnetic shielding and magnetic temperature compensation components.

1j85 Chemical composition

composition	C	P	S	Mn	Si
	≤
Content(%)	0.03	0.02	0.02	0.3~0.6	0.15~0.3



composition	Ni	Cr	Mo	Cu	Fe
Content(%)	79.0~81.0	-	4.8~5.2	≤0.2	Bal



Ni80Mo5 Mechanical performance (1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
980	1030	3~50



Ni80Mo5 Physical properties

Density	Resistivity at 20℃	Coefficient of linear expansion 20℃~200℃	Saturation magnetostriction coefficient	Curie point
(g/cm3)	(Ωmm2/m)	X10-6/℃	λθ/ 10-6	Tc/ ℃
8.75	0.56	10.9~11.2	0.5	400



Magnetic properties
Ni80Mo5	Initial permeability	Maximum permeability			Coercivity	Saturation magnetic induction
Cold rolled strip or plate Thickness, mm	μ0.08/ (mH/m)		μm/ (mH/m)	Hc/ (A/m)			BS/ T
	≥			≤
0.01 mm	20		87.5	4.8			0.75
0.1~0.19 mm	37.5		187.5	1.6
0.2~0.34 mm	50		225	1.2
0.35~1.0 mm	62.5		312.5	0.8
1.1~2.5 mm	50		187.5	1.2
2.6~3.0 mm	43.8		150	1.44
Cold drawn wire
0.1 mm	8.7		37.6	6.4
Bar
8-100 mm	37.5		125	1.6

Heat treatment system

shop sign	Annealing medium	heating temperature	Keep the temperature time/h	Cooling rate
1j85	Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa	Along with the furnace heating up 1100~1150ºC	3~6	In 100 ~ 200 ºC / h speed cooling to 600 ºC, fast to 300 ºC draw a charge



Heat Treatment

Permalloy 80 not hardenable by heat treatment. Annealing can be performed in a dry hydrogen atmosphere at 1176°C (2150° F) for 4 h, followed by furnace cooling to 593°C (1100°F), and then a cooling rate of 260°C (500°F)/ h from 593 to 372°C (1100 to 700°F). Air cooling should be done to 372°C (700°F). Strain relief annealing can be performed at 927°C (1700°F) for 1/2 h in a dry hydrogen or inert gas atmosphere.

Usage
It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

Products parameters





Soft magnetic alloys are a class of alloys with high permeability and low coercivity in weak magnetic fields. According to the different elements that make up the alloy, it can be divided into electromagnetic pure iron (industrial pure iron), iron-silicon alloy, iron-nickel alloy, iron-aluminum alloy, iron-silicon-aluminum alloy and iron-cobalt alloy, etc.

1J06,1J12,1J17,1J18,1J22,1J30,1J36,1J38,1J46,1J50,1J51,1J54,1J76,1J77,1J79,1J80,1J85,1J87

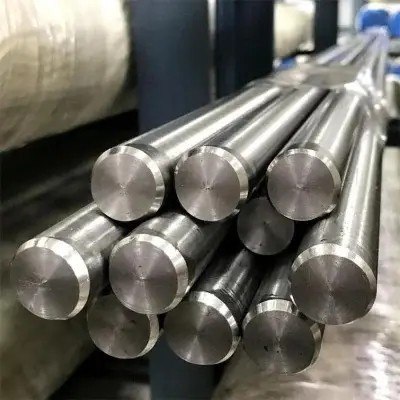

Product Picture

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary
