Aisi 1045 Steel Cold Drawn

Products Description aisi 1045 cold drawn steel is a high-quality carbon structural steel. Its hardness is not high, but it is easy to cut and is commonly used as a template, pin, guide pillar, etc. in molds. In order to achieve the required mechanical properties, aisi 1045 steel needs to...

Send Inquiry

Product Introduction

Products Description

aisi 1045 cold drawn steel is a high-quality carbon structural steel. Its hardness is not high, but it is easy to cut and is commonly used as a template, pin, guide pillar, etc. in molds. In order to achieve the required mechanical properties, aisi 1045 steel needs to undergo heat treatment. The recommended heat treatment includes normalizing (850 ℃), quenching (840 ℃), and tempering (600 ℃). After such heat treatment(Q+T), the hardness of 1045 steel can reach HRC55 (up to HRC62), and it has good comprehensive mechanical properties. It is widely used in various important structural parts, especially connecting rods, bolts, gears, and shafts working under alternating loads.
In addition, the specific values of the tensile strength and yield strength of 1045 steel are 600MPa and 355MPa, respectively, with an elongation of 16%, a reduction in area of 40%, and an impact energy of 39J. These performance indicators indicate that 1045 carbon steel has good strength and toughness, and is suitable for various engineering applications.

Equivalent Grade

AISI / SAE	DIN / W.Nr	JIS	GB
1045	CK45 C45E 1.1191	S45C	45#

Chemical Composition(%)

Steel Grade	C	Si	Mn	P	S	Cr	Ni
1045	0.43-0.50	≤ 0.40	0.60-0.90	≤ 0.040	≤ 0.050	≤ 0.05	≤ 0.20

aisi 1045 Cold Drawn Steel Bar Processing:
EAF + LF + VD + CONCASTING BILLETS + HOT ROLLED + SHOT BLASTING +(ANNEALING) + COLD DRAWN + OILING + BUNDLING + BOTH ENDS CUTTING+ PACKING + MARKING
SAE 1018 1020 1045 Cold Drawn Square Steel Bar
Tolerance and properties of aisi 1045 cold drawn steel bars

	Hot Rolled	Cold Drawn	Turned & Polished	Turned, Ground & Polished	Drawn, Ground & Polished
Diameter	+/- 0.008"	+/- 0.001"	+/- 0.001"	+/- 0.0002"	+/- 0.0002"
Straightness	0.050" Max Per Foot	0.005" Max Per Foot	0.005" Max Per Foot	0.005" Max Per Foot	0.005" Max Per Foot
Yield Strength	Comparison Standard	Up to 80% Over Hot-Rolled	Same as Hot-Rolled	Same as Hot-Rolled	Up to 80% Over Hot-Rolled
Tensile Strength	Comparison Standard	Up to 40% Over Hot-Rolled	Same as Hot-Rolled	Same as Hot-Rolled	Up to 40% Over Hot-Rolled
Machinability	Comparison Standard	Up to 25% Over Hot-Rolled	Same as Hot-Rolled	Same as Hot-Rolled	Up to 25% Over Hot-Rolled
Surface Finish	Rough Iron Oxide	30 Ra	45 Ra	10 Ra	10 Ra

Sizes we can supply for cold drawn steel bars:

Shapes	Sizes	Processing
Steel Round Bar	5mm to 63.5mm	Cold Drawn
Steel Round Bar	63.5mm-120mm	smooth-turned and polished.
cold drawn steel square bar	55mm to 120120mm	Cold Drawn
cold drawn steel hex bar	5mm to 120mm	Cold Drawn
cold drawn steel hexagonal bar	5mm to 120mm(side to side)	Cold Drawn

Product Picture

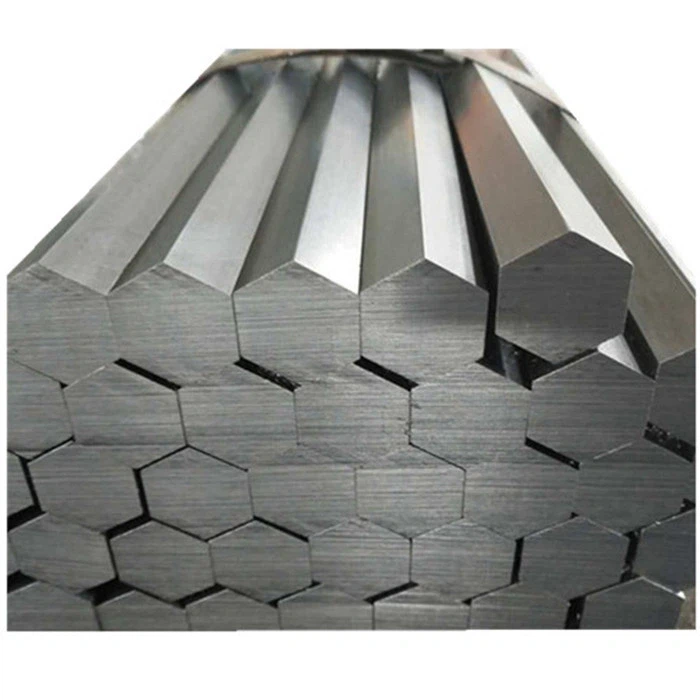

cold drawn bar

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

Application:

1045 cold drawn steel bars are used to peoduce hardware tools, auto parts, standard parts, fasteners common shaft, machinery manufacturing, light industry, hardware, bicycles, cars, motorcycles, textile machinery, transformers and other machinery industry

aisi 1045 steel cold drawn material advantages:
1.The size and section of 1045 cold drawn steel provides Tighter tolerances which Reduces machining losses.
2.Good surface finish which Reduces surface machining & improves quality.
3.Good Straightness which Facilitates automatic bar feeding in CNC.
4.It can increase the Mechanical Properties which Can reduce the need for hardening.
5.It can improve the Machinability and Productivity which Enables higher machining feeds, high tool life, yield & speeds and improved machined finish.

Packing & Delivery

1045 cold drawn bars

Packing & Delivery

Port:Any Chinese Port

The inner size of container is below:

-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)

Main Materials we produce for cold drawn steel bars:

Type	JIS	AISI	Application
Carbon	S10C, S20C, S25C, S35C, S45C, S48C, CH25K, CH25KS, CH35KS, CH38K, CH45K, CH45KS	1010, 1018, 1020, 1045, 1050	Oil Pressure Shaft/Automotive Parts
Allay Steel	SMn443, SCr420, SCr440, SCM415, SCM420, SCM435, SCM440, SNCM220, SNCM420	1541, 5120, 5140, 4115, 4120, 4135, 4140, 8620, 4320,52100/GCr15	CV JOINT, Differential Gear
Free cutting Steel	SUM21, SUM22, SUM23, SUM43, SUM24L, SUM24EZ	1213, 1141, 1144, 12L14,1215,1215ms	CNC Machine
