1045 steel tubing

Name: 1045 steel tubing
Brand: Huitai
SKU: 223820186

AISI1045 seamless steel tube is made by piercing steel ingots or solid billets into capillary tubes and then hot rolling, cold rolling, or cold drawing. AISI1045 Seamless steel pipe is made of mild carbon steel. It is used to manufacture mechanical parts, such as...

Send Inquiry

Product Introduction

Products Description

1045 steel tubing is made by piercing steel ingots or solid billets into capillary tubes and then hot rolling, cold rolling, or cold drawing. AISI1045 steel tube is made of mild carbon steel. It is used to manufacture mechanical parts, such as load-bearing parts for automobiles and tractors.

Equivalent Grade:

GB	DIN	NF	SS	JIS	BS	AISI/SAE	ISO
45#	1.0503	C45	1650	S45C	IC45/080A47	1045	C45E4

Chemical composition:

C	Si	Mn	S	P	Cr	Cu	Ni
0.42~0.50	0.15~0.35	0.50~0.80	≤0.030	≤0.030	≤0.25	≤0.25	≤0.30

1045 steel tubing Mechanical Properties

Steel Grade

Tensile strength

σ b N/mm²

Yield strength

σ s N/mm²

Elongation

δ %

Hardness

AISI 1045 (CK45)

≥600

≥520

≥12

207

Available Produced Size Table

1045 Seamless Steel Cold Drawn Tube, Precision Tube, Honed Tube, SRB Tube. Customied size is also available
ID (mm)	OD (mm)	WT (mm)	Weight (kg/m)	ID (mm)	OD (mm)	WT (mm)	Weight (kg/m)
35	45	5	4.932	90	108	9	21.97
45	55	5	6.17	90	114	12	30.18
50	65	7.5	10.63	100	110	5	12.95
50	68	6	9.17	100	111	5.5	14.31
50	70	10	14.8	100	114	7	18.47
55	65	5	7.398	100	121	10.5	28.61
56	68	6	9.2	100	127	13.5	37.79
63	73	5	8.38	110	127	8.5	24.84
63	76	6.5	11.14	110	133	11.5	34.46
63	80	8.5	15	110	140	15	46.24
63	83	10	18	115	135	10	30.83
70	80	5	9.25	120	140	10	32.058
70	82	6	11.245	125	137	6	19.38
70	83	6.5	12.26	125	140	7.5	24.51
70	85	7.5	14.33	125	146	10.5	35.09
70	90	10	19.73	125	152	13.5	46.12
75	88	6.5	13.06	130	159	11	38.25
75	90	7.5	15.258	135	159	12	43.5
75	95	10	20.96	140	159	9.5	35.03
80	85	2.5	5.09	140	168	14	53.167
80	90	5	10.48	150	168	9	35.29
80	92	6	12.73	150	180	15	61.03
80	95	7.5	16.18	150	194	22	93.31
80	100	10	22.194	160	170	5	20.34
80	102	11	24.685	160	180	10	41.92

Application:
1. Low and middle pressure fluid transportation pipeline
2. Casing Tube
3. Boiler Pipe
4. Petroleum and natural gas industry
5. Chemistry industry
6. Electric industry

Product Picture

AISI 1045 Seamless Steel Pipe

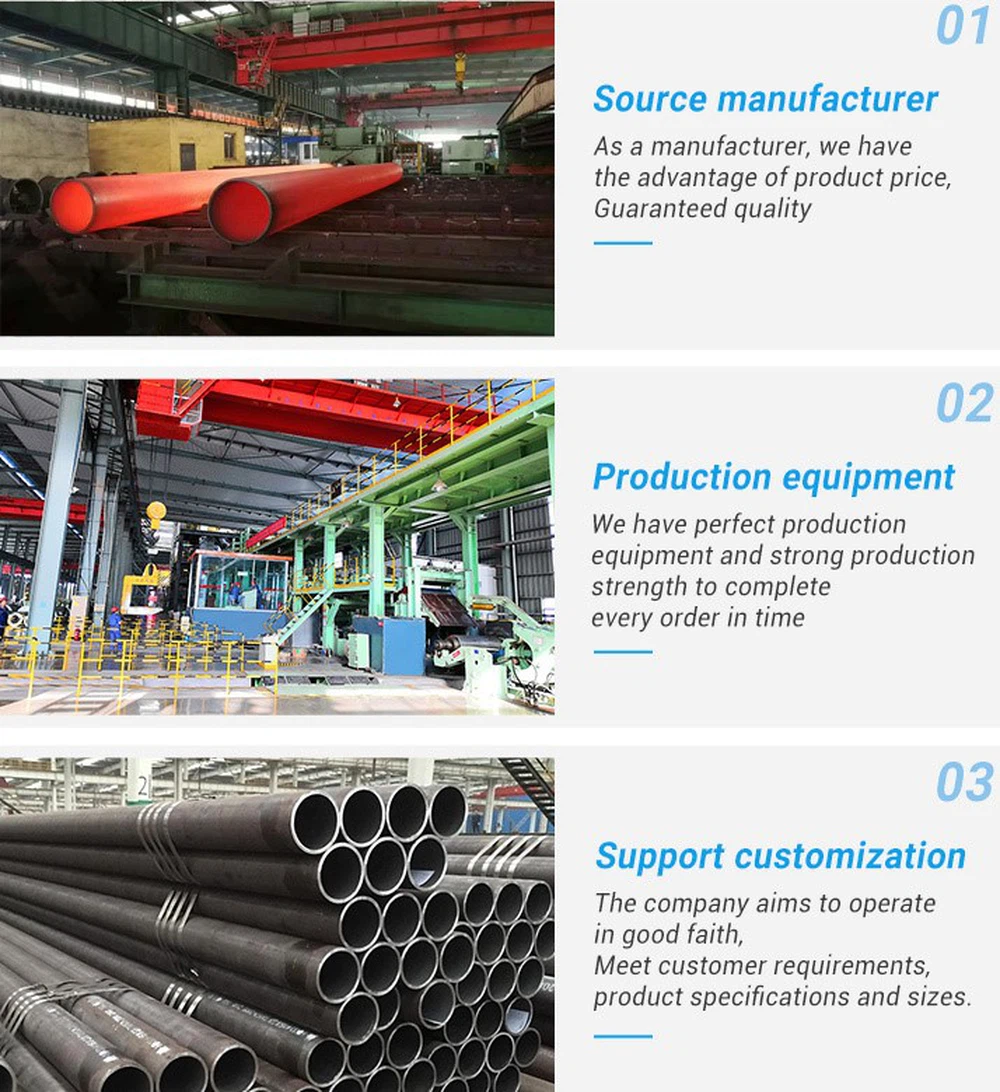

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

Sichuan huitai special metals Co.,Ltd produce 1045 steel tubing with round tube / square tube / rectangle tube . Both of welded tube and seamless tube are available for our production. 1045 carbon steel hollow bars are also our main produced product.

Packing & Delivery

Seamless steel pipe 1045

Packing & Delivery

Port:Any Chinese Port

The inner size of container is below:

-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
