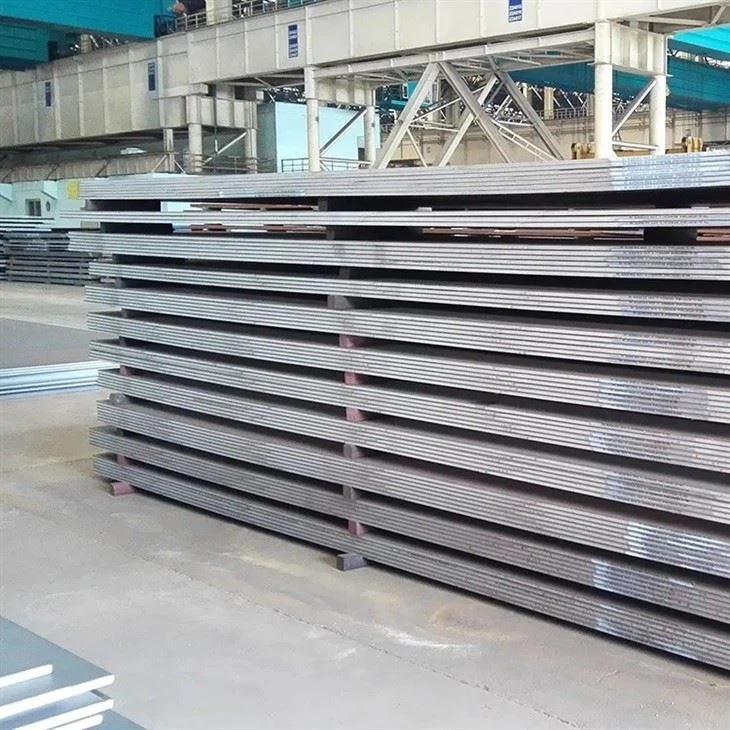

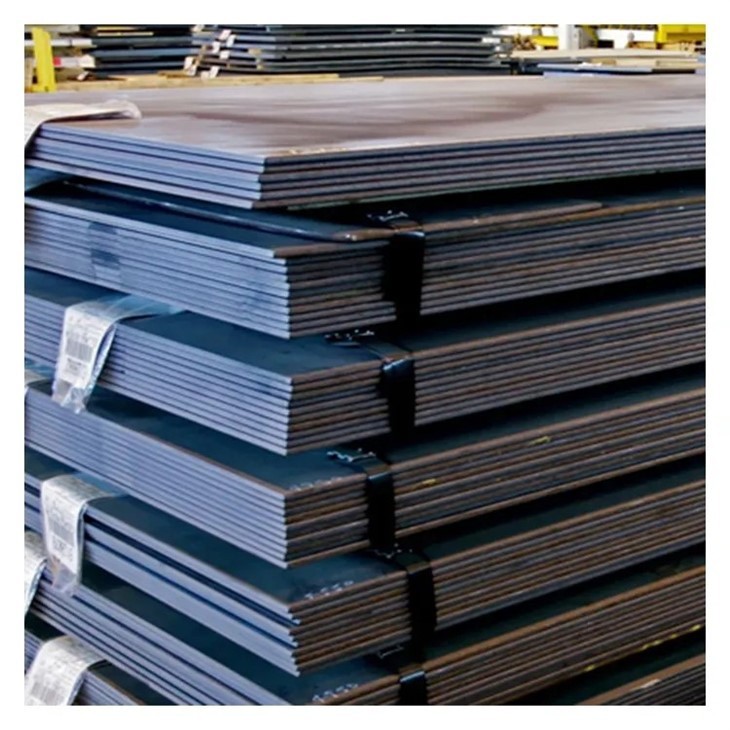

A36 Mild Steel Plate
A36 Mild Steel Plate
A36 Mild Steel Plate
A36 Mild Steel Plate
A36 Mild Steel Plate

A36 Mild Steel Plate

A36 Mild Steel Plate manufacturing process: The smelting of A36 Mild Steel is usually carried out in converter and open hearth. Converters generally smelt ordinary carbon steel, while open furnaces smelt all kinds of high-quality steel. The technology of oxygen top blow converter is developing...

Send Inquiry

Product Introduction

A36 Mild Steel Plate manufacturing process:

The smelting of A36 Mild Steel is usually carried out in converter and open hearth. Converters generally smelt ordinary carbon steel, while open furnaces smelt all kinds of high-quality steel. The technology of oxygen top blow converter is developing rapidly and it can replace open hearth furnace. The refined liquid steel is injected into the ingot mold to obtain various ingot. After the ingot is forged or rolled, it is processed into plates, strips, bars, and sections of various sectional shapes. A36 Mild Steel is usually used directly in the hot rolled state. When used for manufacturing tools and various machine parts, it needs to be heat treated according to the requirements of use; As for steel castings, most of them are heat-treated

Chemical Composition

Steel grade	C	Si	Mn	P	S	Als
Grade AH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade DH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade EH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade FH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015

Mechanical Properties

Steel grade	Yield point/MPa	Tensile point /MPa	Elongation/%	Temperature/° C	V-type impact test
					Akv/J
					≤50MM	50-70MM	70-100MM
Grade AH36	≥355	490-630	≥21	0	34/24	41/27	50/34
Grade DH36	≥355	490-630	≥21	-20	34/24	41/27	50/34
Grade EH36	≥355	490-630	≥21	-40	34/24	41/27	50/34
Grade FH36	≥355	490-630	≥21	-60	34/24	41/27	50/34

Product Picture

Ballistic steel plate

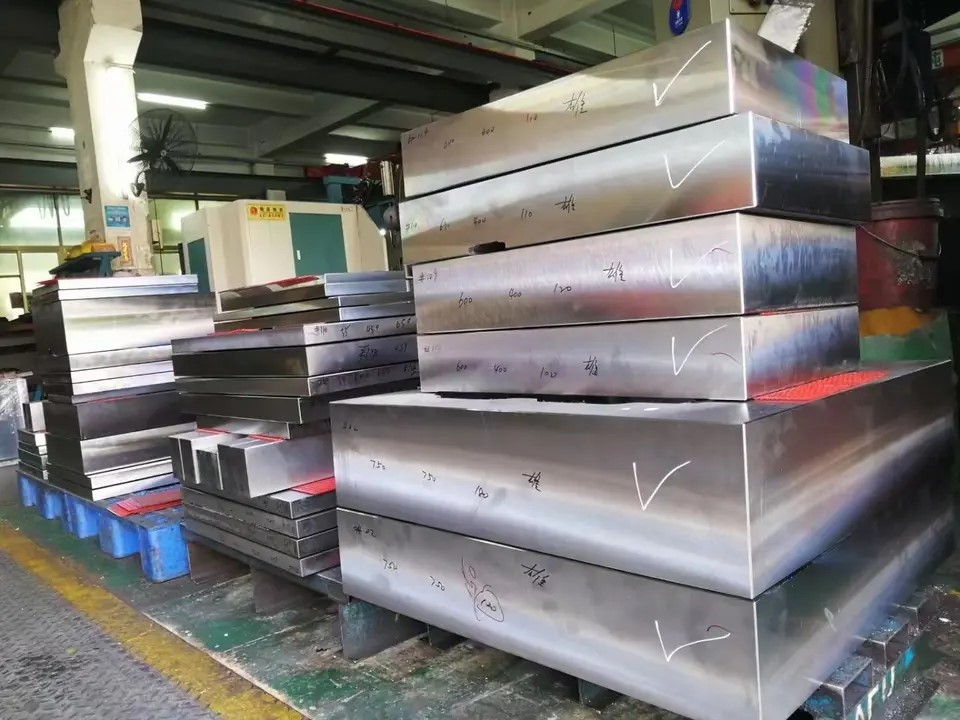

1045 TWO sides cut mild carbon steel plate

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

Delivery

s355jr carbon steel plate

Packing & Delivery

Port:Any Chinese Port

The inner size of container is below:

-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high
