S136 Plastic Mold Steel Plate
Type:Round bar
Delivery condition: Annealed black surface/Machined bright surface/Q+T
Products Description
S136 Mold steel is ideally suited for plastic moulds, for acid aggressive plastics,PVC or acetates, and can be used with plastics containing abrasive fillers. It also is suitable to produce components for mediacal and optical applications.
Grades Comparison
| Germany(DIN) | Japan(JIS) | USA(AISI) | Sweden(SS) | China(GB) |
| 1.2083 | SUS420J2 | 420 | S136 | 4Cr13 |
Chemical Composition(%)
| Steel Grade | Chemical Composition(%) | |||||
| C | Si | Mn | P | S | Cr | |
| 1.2083 | 0.36-0.42 | ≤1.00 | ≤1.00 | ≤0.030 | ≤0.030 | 12.50-13.50 |
| SUS420J2 | 0.26-0.35 | ≤1.00 | ≤1.00 | ≤0.035 | ≤0.030 | 12.00-14.00 |
| 420 | 0.26-0.40 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 12.00-14.00 |
| S136 | 0.38 | 0.9 | 0.5 | ≤0.040 | ≤0.030 | 13.6 |
| 4Cr13 | 0.36-0.45 | ≤0.60 | ≤0.80 | ≤0.035 | ≤0.030 | 12.00-14.00 |
Heat Treatment
Annealing : 810 - 830 °C
Hardness after annealing : Max230 HB
Stress relieving : Approx. 650 °C
Hot forming : 1050 - 850 °C
Hardening: 970 - 990 °C
Quenching media : Oil, Vacuum
Hardness after quenching : 30-36 HRC
Hardness after tempering:
Available size(mm):
| Flat Bar Size(mm) | Round bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 10-700 | 155-2200 | 2000-6000 | 20-200 | 3000-5500 |
Features
1. Highly quality of corrosion resistance
2. Pre-hardened delivery save forming mould time
3. Good anti-rusty capacity and easy for welding
4. Excellent polish ability and wear-resisting with high toughness
5. Convenient heat treatment for quenched&tempered steel, without deformed
Application
1. Transparent plastic mould
2. Highly stressed cutting and punching tools for thin sheets
3. Stone processing tools and knives for paper and plastics,shear knives
4. Requiring higher food industrial equipment parts and PVC / PP / EP

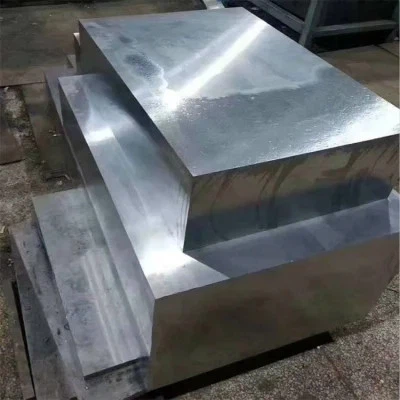

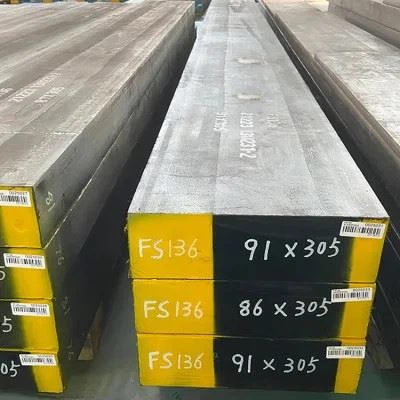

Product Picture
Our factory
Steel Making
Ingot Production
Forged Bars
Machinary
Packing & Delivery
Packing & Delivery
-
The inner size of container is below:
-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Our Service
1. Competitive price and quality from our own factory .
2. Best service with 24 hour`s reply .
3. Flexible payment with T/T,L/C , etc .
4. Smooth production ability(1000tons/month).
5. Quick delivery and standard exporting package.
