H13 Tool Steel Plate For Sale

Introduction

As manufacturers in China continue to excel in producing world-class products, there is no doubt that such products are in high demand across the world. With an excellent reputation for manufacturing quality products, we are excited to introduce our H13 Tool Steel Plate to merchants outside of China. Our H13 Tool Steel Plate is one of the finest products in the steel industry, and it is designed to meet the needs of customers who require the highest quality products.

About the H13 Tool Steel Plate

Our H13 Tool Steel Plate is made from high-quality raw materials that are carefully selected for their unique properties. We use premium quality steel during production, which is capable of resisting high-pressure, thermal shock, and wear. Furthermore, our H13 Tool Steel Plate is made with high levels of chromium, molybdenum, and vanadium, giving it exceptional hardness and toughness. Our H13 Tool Steel Plate is also versatile, which makes it suitable for use in a wide range of applications.

Applications of the H13 Tool Steel Plate

Our H13 Tool Steel Plate is incredibly versatile and can be used for a wide range of applications. It is used in the production of hot-working dies and molds for aluminum, copper alloys, and other nonferrous metals. The H13 Tool Steel Plate's high resistance to thermal shocks and wear makes it ideal for use in high-temperature applications such as die casting, forging, and extrusion.

Mechanical Properties

Our H13 Tool Steel Plate exhibits excellent mechanical properties, including high dimensional stability and resistance to deformation. It has a low degree of distortion during heat treatment, making it an excellent choice for high-precision applications. Our H13 Tool Steel Plate provides excellent toughness, wear resistance, and fatigue resistance, making it ideal for applications that experience extreme stress.

Chemical Composition

The H13 Tool Steel Plate is made up of elements such as carbon, chromium, molybdenum, vanadium, and silicon. These elements work together to provide the unique properties that make the H13 Tool Steel Plate one of the best steel products in the industry. The high chromium content in the H13 Tool Steel Plate provides excellent resistance to oxidation and corrosion.

Heat Treatment

Our H13 Tool Steel Plate is provided in the fully annealed condition. The annealing process is performed in a vacuum furnace, which prevents oxidation and achieves superior results. The fully annealed H13 Tool Steel Plate is free of residual stress and is exceptionally uniform in its properties. The H13 Tool Steel Plate is provided in the fully annealed condition, so it is incredibly easy to machine to any desired shape or size.

Conclusion

We take pride in producing high-quality products that meet every need of our customers. Our H13 Tool Steel Plate is no exception. It is made from the finest raw materials, and we use the latest technology to ensure that the product is made to the highest standard. With its high resistance to wear and thermal shock, excellent toughness, and versatility, our H13 Tool Steel Plate is an exceptional product that will undoubtedly meet the needs of merchants. We are confident that the H13 Tool Steel Plate will meet the expectations of our customers and that they will enjoy the benefits of using our product. We look forward to the opportunity to do business with you.

Products Description

AISI H13 Hot Work Tool Steel (DIN 1.2344 ) is a tool steel grade standardised for hot working. The main feature of this grade is the combination of alloyed elements of Cr, Mo and V, which provides a high wear resistance to thermal shock. It is well known as for its great strength, and heat resistance. It is heavily used for die casting in the cold heading field. The presence of high vanadium in DIN 1.2344 can handle the abrasion at both low and high temperatures. It always provides a uniform and high level of machinability. This tool steel is mostly used for aluminum, magnesium and zinc die casting.

H13 Produce Dimensions

Round: dia.10-700 mm
Flat: 6-120 x 40-1200 mm
Block: 80-600 x 100-1600 mm

Characteristics
1. Air cooling hardened hot work tool steel, most widely used.
2. High toughness Good cold & thermal fatigue resistance.
3. Small distortion, deformation and oxide skin after heat treatment during air cooling.
4. Good resistance from the undermining of fusing Aluminum.

Products parameters

H13 Steel Equivalent Grades:

GB	W.Nr/DIN	AISI	JIS
4Cr5MoSiV1	1.2344	H13	SKD61



H13 Tool Steel Chemical Composition (%)

Steel Grade	C	Si	Mn	P	S	Cr	Mo	V
1.2344	0.35-0.42	0.80-1.20	0.25-0.50	≤ 0.030	≤ 0.020	4.80-5.50	1.20-1.50	0.85-1.15
H13	0.32-0.45	0.80-1.20	0.20-0.50	≤ 0.030	≤ 0.030	4.75-5.50	1.10-1.75	0.80-1.20
SKD61	0.32-0.42	0.80-1.20	0.25-0.50	≤ 0.030	≤ 0.030	4.50-5.50	1.00-1.50	0.80-1.15

Forging Technique

Heat Temperature	Start Forging Temperature	Finish Forging Temperature	Cooling Method
1120-1150 °C	1050-1100 °C	900-850 °C	Pit or Sand Cooling

Heat Treatment

Annealing
750 to 800°C (1382 to 1472°F)
Slow controlled cooling in furnace at a rate of 10 to 20°C/hr (50 to 68°F/hr) down to
approx. 600°C (1112°F), further cooling in air.
Hardness after annealing: max. 235 HB.

Hardening
1020 to 1080°C (1868 to 1976°F)
Oil, salt bath (500 - 550°C / 932-1022°F), air
Holding time after temperature equalization: 15 to 30 minutes.
Obtainable hardness:
52 - 56 HRC in oil or salt bath,
50 - 54 HRC in air.
Stress relieving
600 to 650°C (1112 to 1202°F)
Slow cooling in furnace; intended to relieve stresses set up by extensive machining, or in complex shapes.
After through heating, hold in neutral atmosphere for 1 - 2 hours.

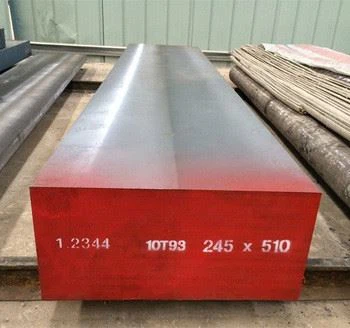

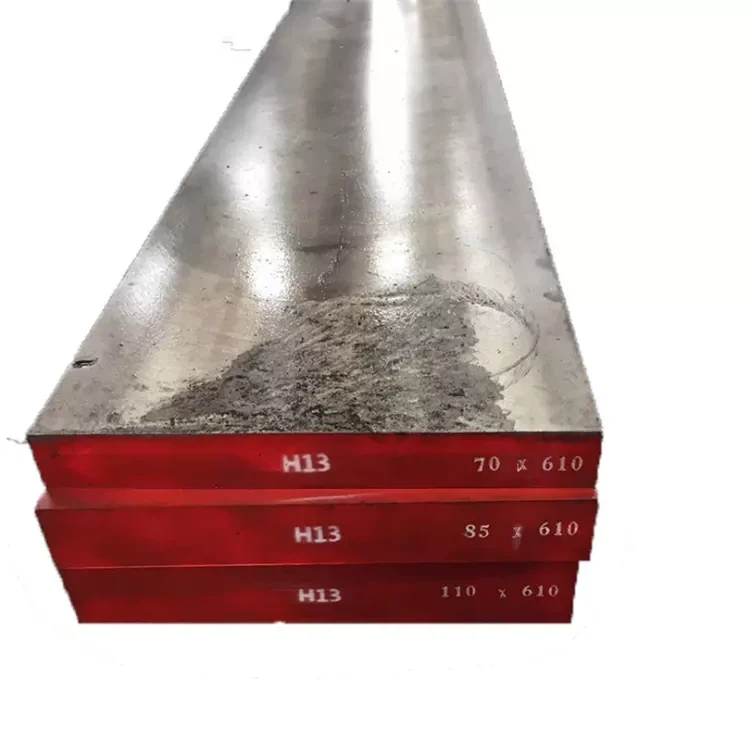

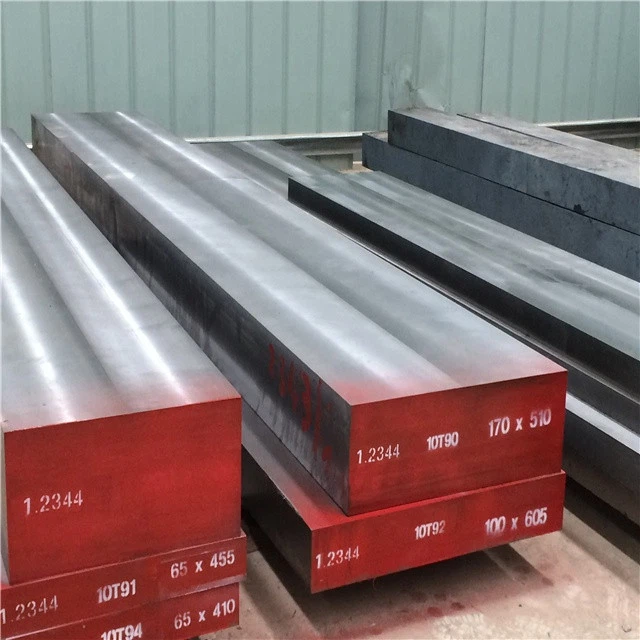

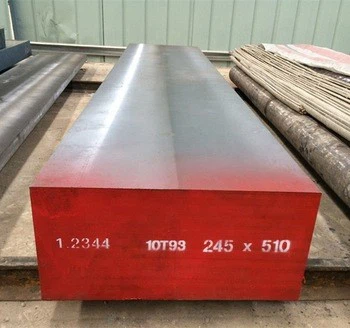

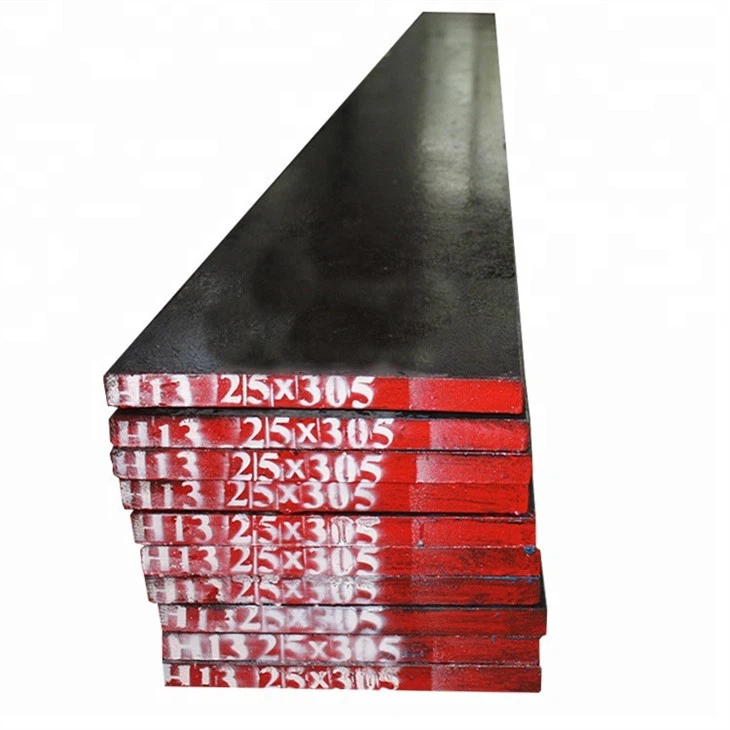

Product Picture

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary



Heat Treatment of H13 / 1.2344 / SKD61 steel

Tempering
Slow heating to tempering temperature immediately after hardening / time in furnace
1 hour for each 20 mm of work piece thickness, but at least 2 hours / cooling in air.
It is recommended to temper at least twice.
A third tempering cycle for the purpose of stress relieving may be advantageous.
1st tempering approx. 30°C (86°F) above maximum secondary hardness.
2nd tempering to desired working hardness.
The tempering chart shows average tempered hardness values.
3rd for stress relieving at a temperature 30 - 50°C (86 to 122°F) be low highest
tempering temperature.

The application case



Applications

● For making aluminum and copper alloy die casting mold when die cavity temperature is below 600°C

● For making forging die, forging press mold, mold hammer block for fine forging machine uses.









Payment terms:

• T/T 30% deposit and the 70% balance after finished production.

• Delivery condition:

• For abundant stock, 7-10 days.

• For customized products, 30-40 days

Why choose us?

• We provide honest and transparent pricing to our customers, ensuring that they know exactly what they are paying for.
• Over the years, our quality system has been continuously improved and the quality level has been continuously improved.
• We are committed to providing our customers with the best possible products and services.
• Our company believes that superior H13 Tool Steel Plate For Sale quality, favorable price and fast delivery will satisfy customers and make repeated orders.
• We offer customization options on all our Die Steel Plates, ensuring that our customers get exactly what they need.
• Adhering to the cultural philosophy of integrity, pragmatism, efficiency, cooperation, win-win, dedication and innovation, collaboration and efficiency, the company has gained fruitful results on the road of continuous progress and pursuit of excellence.
• We have a streamlined manufacturing process that allows us to offer quick turnaround times for all our products.
• We continue to inject new connotations into the development of the industry through innovation in industrial model and management.
• Our factory is committed to reducing our environmental impact and promoting sustainable manufacturing practices.
• We use advanced production technology, strict operation procedures, scientific testing methods, and complete quality management system to produce brand products that are recognized by the market.
