x46cr13 stainless steel
Products Description

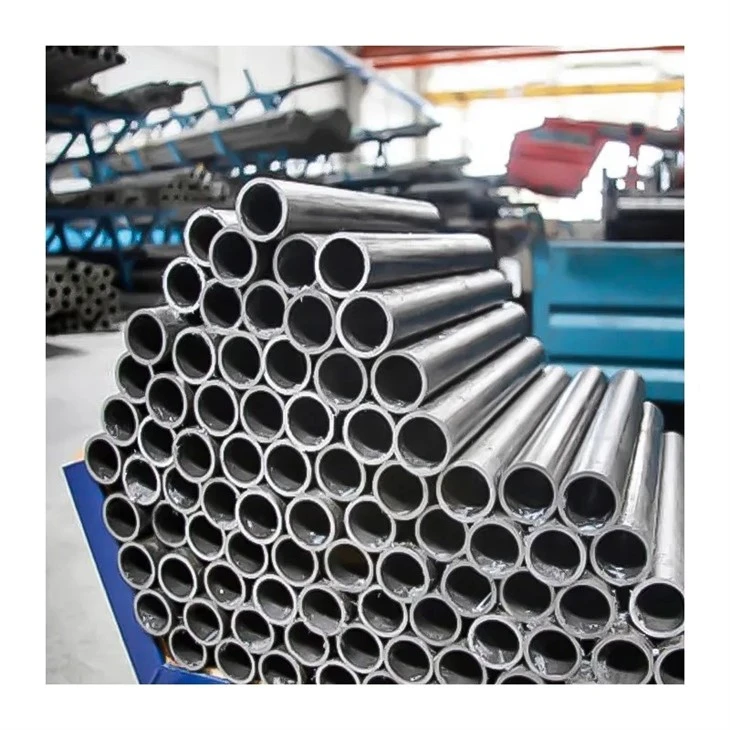

X46Cr13 stainless steel hollow bar has fair-to-good corrosion resistance and good material strength.The X46Cr13 Stainless Steel Hollow Bar resist corrosion from alcohol, ammonia, food environments, fresh water, many petroleum products and organic materials and some mild acid environments.X46Cr13 Stainless Steel Hollow Bar is normally used in the production of bearings, valves, lighters and writing instruments.
| x46cr13 stainless steel hollow bar | ||||||
| 1. Equivalent Grade | AISI 420C/ SUS 420C /1.4034 | |||||
| 2. Size Range | 1mm-180mm | |||||
| 3. Hardness | HRC 54-60 | |||||
| 4. Characteristic | (a) A good mix between hardness and resistance to oxidation | |||||
| 5. Magnetic | Strong | |||||
| 6. Application | Valves, special bearings, application with medium aggressive atmosphere | |||||
| 7. Chemical composition | ||||||
| C% | Si% | Mn% | Cr% | P% | S% | |
| min. | 0.43 | --- | --- | 12.5 | --- | --- |
| max. | 0.50 | 1.00 | 1.00 | 14.5 | 0.04 | 0.015 |
| International Standard | ||||||
| ITA | USA | GER | FRA | UK | RUS | CHN |
| X46Cr13 | 420C | 1.4034 | Z34C14 | - | 40kh13 | 4Cr13 |
Product Picture
Our factory
Steel Making
Ingot Production
Forged Bars
Machinary
x46Cr13 stainless steel heat treatment specification
The heat treatment specifications for X46Cr13 stainless steel include processes annealing, quenching, and tempering. The annealing temperature is usually between 800 and 900 ℃ for slow cooling, or about 750 ℃ for fast cooling. The quenching temperature is carried out in oil at 1050 to 1100 ℃ to obtain higher hardness. The tempering temperature is rapidly cooled between 200 and 300 ℃ to restore the plasticity of the material. These heat treatment specifications improve x46Cr13 stainless steel mechanical properties and corrosion resistance.
The hardness of x46Cr13 stainless steel after heat treatment is good. It is not exceed 201HB in the annealed state, while the hardness after quenching and tempering can reach 500HV or above. These data indicate that the hardness of x46Cr13 stainless steel has been significantly improved after appropriate heat treatment, which is crucial for improving its wear resistance and corrosion resistance.
material x46cr13 applications:
1. Manufacturing tool: 1.4034 x46cr13 is suitable for manufacturing tools such as cutting tools, molds, screws, etc.
2. Manufacturing parts: x46cr13 stainless steel can be used to manufacture automotive parts, mechanical parts, ship parts, etc.
3. Architectural decoration: x46Cr13 steel has a bright surface and is suitable for fields such as architectural decoration and furniture production.
Packing & Delivery
Packing & Delivery
-
The inner size of container is below:
-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
