1.4462 Duplex Steel Pipe
Products Description
Production Description:
1. Steel Grade: EN1.4462 AISI S31803 S32205
2. Product name: EN1.4462 AISI S31803 S32205 Stainless Duplex Steel Bar
3. Length: 3000-12000mm or as required
4. Diameter: 3-2000mm
Specification:
Steel 1.4462 (Mat.No. 1.4462, DIN X2CrNiMoN225)
1.4462 Equivalent Grades
| Brand Name | Ravne No. | Mat. No. | DIN | EN | AISI |
| 1.4462 | 338 | 1.4462 | X2CrNiMoN225 | X2CrNiMoN22-5-3 | - |
1.4462 Steel Chemical Composition (in weight %)
| C | Si | Mn | Cr | Mo | Ni | V | W | Others |
| 0.02 | 0.50 | 1.00 | 22.00 | 3.00 | 5.50 | - | - | - |
Description
1.4462 / 2205 stainless steel is a duplex stainless steel, also known as a duplex alloy. It is composed of approximately 17-19% chromium, approximately 4-6% nickel, approximately 3% molybdenum, and approximately 0.08-0.20% nitrogen.
Applications
Chemical and oil processing industry. Highly resistant to stress corrosion in chlorine surroundings.
Physical properties (avarage values) at ambient temperature
Modulus of elasticity [103 x N/mm2]: 200
Density [g/cm3]: 7.8
Thermal conductivity [W/m.K]: 16.0
Electric resistivity [Ohm mm2/m]: 0.80
Specific heat capacity[J/g.K]: 0.45
Coefficient of Linear Thermal Expansion 10-6 oC-1
| 20-100℃ | 20-200℃ | 20-300℃ |
| 13.0 | 13.5 | 14.0 |
Hardening
Harden from a temperature of 1040-1100℃followed by water quenching.
1.4462 stainless steel mechanical properties at at ambient temperature
Condition: Annealed
Hardness: 185 HB
0.2% proof stress: >=480 N/mm2
Tensile strength: 680-880 N/mm2
Elongation (A5): >=25%
0.2 % proof stress in N/mm2 vs. Temperature in oC
| 50 ℃ | 100℃ | 150 ℃ | 200 ℃ | 250 ℃ | 280 ℃ |
| 410 | 360 | 335 | 310 | 295 | 285 |
Forging
Hot forming temperature: 1200-900℃, slow cooling in air.

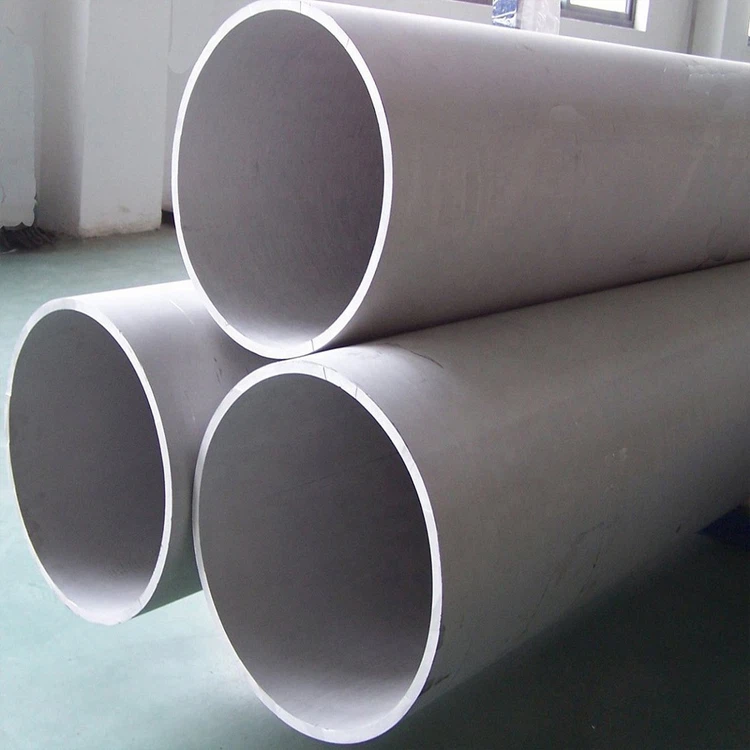

Product Picture
Our factory
Steel Making
Ingot Production
Forged Bars
Machinary
Packing & Delivery
Packing & Delivery
-
The inner size of container is below:
-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Our Service
1. Competitive price and quality from our own factory .
2. Best service with 24 hour`s reply .
3. Flexible payment with T/T,L/C , etc .
4. Smooth production ability(1000tons/month).
5. Quick delivery and standard exporting package.
