1.4545 Stainless Steel
Steel-making Condition: EF/EAF+LF+VD
Delivery Condition:Annealed , Quenched + Tempered
Surface Condition:Black, Grinded, Peeled, Rough turned, Polished
Products Description
1.4545 Stainless Steel is a martensitic precipitation-hardening stainless steel that provides high strength, good corrosion resistance, good mechanical properties at temperatures up to 600°F (316°C) and good toughness in both the longitudinal and transverse directions in both base metal and welds. Short-time, low-temperature heat treatments minimize distortion and scaling.
1.4545 Stainless Steel is the ferrite stainless Steel. Material 1.4545 alloy is widely used in the aerospace, chemical, petrochemical, food processing, paper and general metalworking industries.
Equivalent Grade:
| DIN | ASTM | UNS | CNU |
|---|---|---|---|
| 1.4545 | XM-12 | S15500 | 15-5PH |
1.4545 Chemical Compositions:
| C | Si | Mn | P | S | Cr | Ni | Cu | Nb+Ta |
|---|---|---|---|---|---|---|---|---|
| 0.07 max | 1.0 max | 1.0 max | 0.030 max | 0.035 max | 14.0-15.0 | 3.5-5.5 | 2.5-4.5 | 0.15-0.45 |
1.4545 stainless steel Mechanical Properties:
| Delivery Condition | Modulus of Elasticity(GPa) | Modulus of Rigidity(GPa) | Tensile Strength Rm (Mpa) | Yield Strength Rp0.2 (Mpa) | Elongation % in 2″ (50.8 mm) | Reduction Of Area (%) | Hardness (HRC) |
|---|---|---|---|---|---|---|---|
| A(annealed) | / | / | / | / | / | / | 35 max |
| H 900 | 197.6 | 77.3 | 1378 min | 1276 min | 14 min | 50 min | 44 min |
| H925 | / | / | 1309 min | 1207 min | 14 min | 54 min | 42 min |
| H1025 | / | 75.9 | 1173 min | 1138 min | 15 min | 56 min | 38 min |
| H1075 | / | 69 | 1138 min | 1035 min | 16 min | 58 min | 36 min |
| H1100 | / | / | 1035 min | 931 min | 17 min | 58 min | 34 min |
| H1150 | / | 69 | 1000 min | 862 min | 19 min | 60 min | 33 min |
1 EAF: Electric Arc Furnace
2 EAF+LF+VD: Refined-smelting and vacuum degassing
3 EAF+ESR: Electro Slag Remelting
4 EAF+PESR: protective atmosphere Electro Slag Remelting
5 VIM+PESR: Vacuum induction melting
1.4545 Steel Application fields
1.4545 stainless steel has good corrosion resistance, water vapor corrosion resistance, chloride corrosion resistance, and resistance to heavy acid and alkali corrosion. It also has high strength and toughness. 1.4545 stainless steel is mainly used in fields such as chemical, marine, energy, and pharmaceutical industries in highly corrosive environments, such as seawater desalination equipment, chemical reactors, steam furnaces, steam turbines, food equipment, etc. 1.4545 stainless steel is also an ideal material for manufacturing corrosion-resistant components such as valves, pipelines, pumps, etc. in industries such as chemical, petroleum, natural gas, and mining.
Production Description
Factory Introduction
Huitai Special Metals has been committed to the research, development and production of special tool steel, die steel and alloy steel since 1997. Especially for High-strength alloy steel, Roll and Gear steel.
Owns 25/60 tons of VOD, VHD refining furnace,12 ton vacuum consumable furnace, 12 ton vacuum induction furnace , 2000 ton/3500 ton quick forging machine,1000 ton precision forging machine,5 tons / 8 tons of electro-hydraulic A set of hammer units, two sets of 1/0.75/0.25 tons air hammer, two sets of 630-ton three-way hydraulic press units, two sets of 315-ton four-column hydraulic leveling units.
Steel Making
Ingot Production
Forged Bars
Machinary
Packing & Delivery

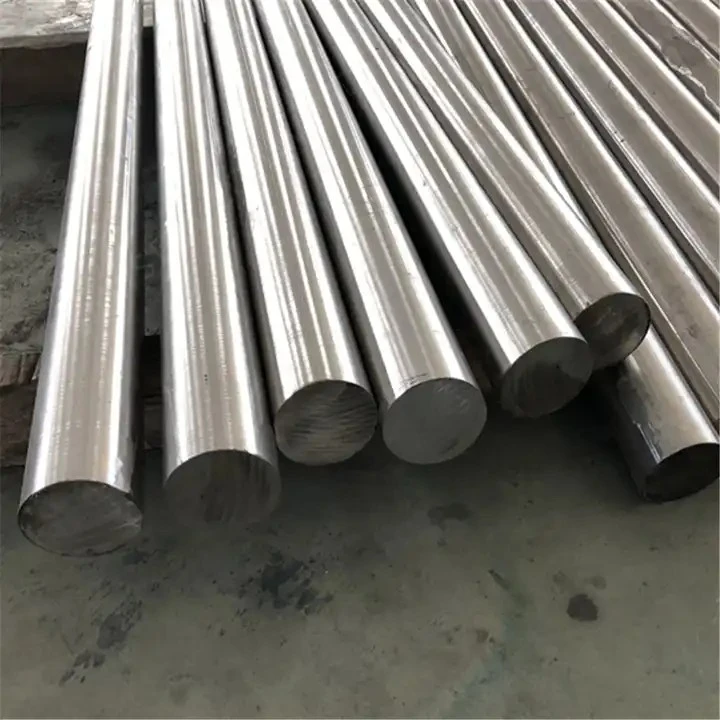

1.4545 Stainess Steel Round Bar Packing & Delivery
-
The inner size of container is below:
-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
