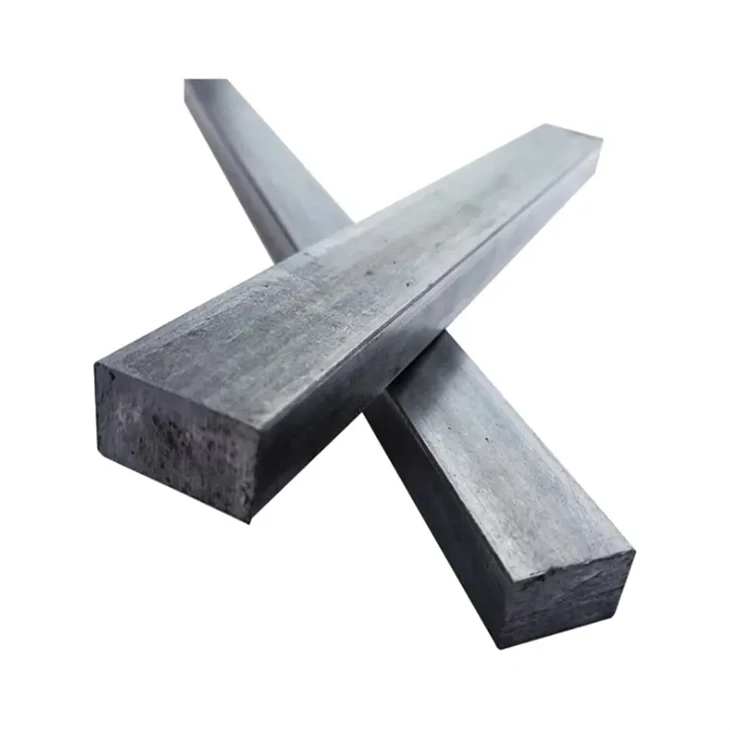

1.4913 Turbine Blade Steel
Products Description
-Processing performance: 1.4913 Turbine Blade Steel can be formed and processed through common cold and hot working methods.
|
1.4913 Steel Specifications
|
|
|
GB
|
DIN
|
| X19CrMoNbVN11-1 |
1.4913
|
1.4913 Blade Steel Chemical Compositions(％):
|
C |
Si |
Mn |
Cr |
Ni |
N |
Mo |
V |
S |
P |
Nb |
| ≤0.20 | ≤1.5 |
≤1.0 |
18.5～21.0 |
≤1.0 | ≤0.10 | 3.0-3.5 | 0.2-0.3 |
≤0.030 |
≤0.040 |
0.15-0.30 |
X19CrMoNbVN11-1, 1.4913 Mechanical properties Q+T
- Tensile strength, Rm: 900-1050 MPa
- Yield point, Re:>750 MPa
- Elongation, A:>12%
- Shrinkage, Z:>40%
- Impact resistance, KV20 ℃:>20J
- Elastic modulus, E: 216 GPa
- Heat capacity, cp20 ℃: 460 J * kg-1 * K-1
- Thermal conductivity, λ： 24,0 W * m-1 * K -1
- Linear expansion coefficient, α： 10,5 * 10-6 K-1
|
Density
|
p=7.9g/cm3
|
|
Melting Temperature Range
|
1320~1390°C
|
Product Picture
Our factory
Steel Making
Ingot Production
Forged Bars
Machinary
Material Applications
1.4913 (X19CrMoNbVN11-1) is a high alloy chromium molybdenum boiler steel with the addition of niobium, vanadium, and boron according to EN 10088-1, EN 10302, and EN 10269. 1.4913 High alloy boiler heat-resistant steel specifically designed for thermal improvement and nitriding. It can withstand 600 ℃ when working at high temperatures, characterized by good creep resistance and creep limit. It is used in the production of bolts, nuts, fasteners, discs and turbine rotors, as well as injection components in the energy, maritime, and aerospace industries.
Quality Control
We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers.
