UNS N04400 Nickel Alloy Plate
Products Description
|
UNS N04400 Nickel Alloy Plate |
|
|
density |
8.8m³ |
|
Nickel content |
63% |
|
Technique |
Cold Rolled; Hot Rolled |
|
Thickness |
0.3-4mm cold rolled; 3-16mm hot rolled; 16-100mm hot rolled; Customized according to customer requirements |
|
Width |
1000mm, 1219mm, 1240mm, 1500mm, 1800mm, 2000mm |
|
Length |
2000mm, 2438mm, 2500mm, 3000mm, 6000mm or as required |
|
Color |
Silver |
|
Standard |
ASME ASTM |
|
Lead Time |
7-15 working days after the receipt of 30% deposit |
|
Payment Terms |
30% TT for deposit,70% TT /70% LC at sight balance before shipment |
|
Price Terms |
FOB, EXW, CIF, CFR |
|
Packing |
Wooden Pallet or according to customer's requirements |
UNS N04400 is one of the few materials that can come into contact with fluorine, hydrofluoric acid and hydrogen fluoride and their compounds, and has excellent resistance to alkaline media. In addition, Monel400 (UNS N04400) has long been the standard material in the field of salt making due to its excellent corrosion resistance to neutral and alkaline salts. It should be noted that since Monel 400 (N04400) does not contain chromium, the corrosion rate increases significantly under oxidizing conditions.
Alloy UNS N04400 Chemical Compositions %
|
Ni
|
Cu
|
C
|
Fe
|
Mn
|
S
|
Si
|
|
≥63
|
≥28
|
≤0.3
|
≤2.5
|
≤2.0
|
≤0.024
|
≤0.5
|
|
Alloy Grade
|
Yield Strength
|
Tensile strength
|
Elongation
|
Density
|
Melting point
|
Poisson's ratio
|
|
|
Mpa
|
Mpa
|
%
|
g/cm3
|
℃
|
|
|
Monel 400
|
≥170
|
≥450
|
≥35
|
8.8
|
1350
|
0.32
|
Product Picture
Our factory

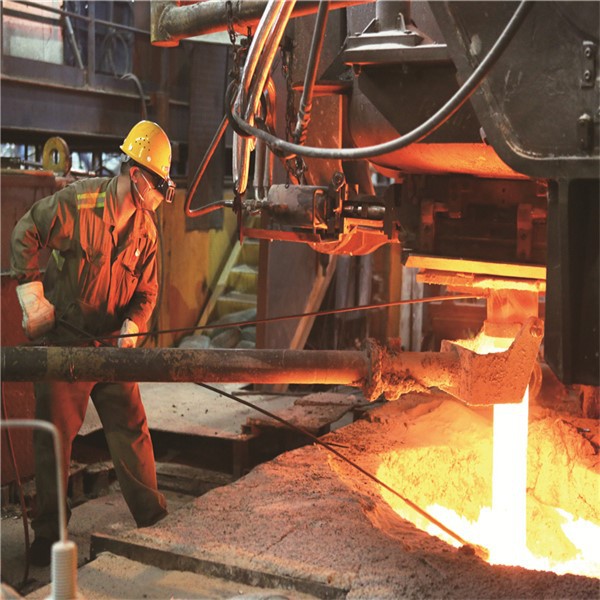

Steel Making
Ingot Production
Forged Bars
Machinary
Production Process
Quality Control
Destructive and Non-Destructive Testing
- Mechanical examining like tensile, Elongation and reduction of area.
- Chemical examination and Spectro Analysis
- Hardness Test
- Pitting Corrosion Test
- Positive material recognition
- Eddy Current test
- Buckling & Crushing test
UNS N04400 Nickel Alloy Plate Application
Packing & Delivery
Packing & Delivery
-
The inner size of container is below:
-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
