1.2344 Hot Work Tool Steel Plate
Products Description
1.2344 Tool Steel is chromium hot work tool steels which are widely used in hot and cold work tooling applications. H13 tool steel is classified as group H steels by the AISI classification system. This series of steels start from H1 to H19.
1.2344 tool steel is characterized by:
* Good resistance to abrasion at both low and high temperatures
* High level of toughness and ductility
* Uniform and high level of machinability and polishability
* Good high-temperature strength and resistance to thermal fatigue
* Excellent through-hardening properties
* Very limited distortion during hardening
|
Test
|
Ultrasonic test according to SEP 1921-84 D/d
|
Length (mm)
|
Max 5800
|
||||
|
Grade
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Mo
|
V
|
|
H13
|
0.32-0.45
|
0.80-1.20
|
0.20-0.50
|
≤0.030
|
≤0.030
|
4.75-5.50
|
1.10-1.75
|
0.80-1.20
|
|
4Cr5MoSiV1
|
0.33-0.43
|
0.80-1.20
|
0.20-0.50
|
≤0.030
|
≤0.030
|
4.75-5.50
|
1.10-1.60
|
0.80-1.20
|
|
1.2344
|
0.33-0.41
|
0.80-1.20
|
0.25-0.50
|
≤0.030
|
≤0.020
|
4.80-5.50
|
1.10-1.50
|
0.30-0.50
|
|
SKD61
|
0.35~0.42
|
0.80-1.20
|
0.25-0.50
|
≤0.030
|
≤0.020
|
4.80-5.50
|
1.00-1.50
|
0.80-1.15
|
|
Properties
|
Metric
|
Imperial
|
|
Density (20°C/68°F)
|
7.80 g/cm3
|
0.282 lb/in3
|
|
Melting point
|
1427°C
|
2600°F
|
|
Properties
|
Metric
|
Imperial
|
||||
|
Tensile strength, ultimate (20°C/68°F, varies with heat treatment)
|
1200 - 1590 MPa
|
174000 - 231000 psi
|
||||
|
Tensile strength, yield (20°C/68°F, varies with heat treatment)
|
1000 - 1380 MPa
|
145000 - 200000 psi
|
||||
|
Reduction of area (20°C/68°F)
|
50.00%
|
50.00%
|
||||
|
Modulus of elasticity (20°C/68°F)
|
215 GPa
|
31200 ksi
|
||||
|
Poisson's ratio
|
0.27-0.30
|
0.27-0.30
|
||||
|
Properties
|
Conditions T (°C)
|
Treatment
|
|
Thermal expansion
|
10.4 x 10-6/ºC
|
-
|
|
Thermal conductivity
|
28.6 W/mK
|
-
|

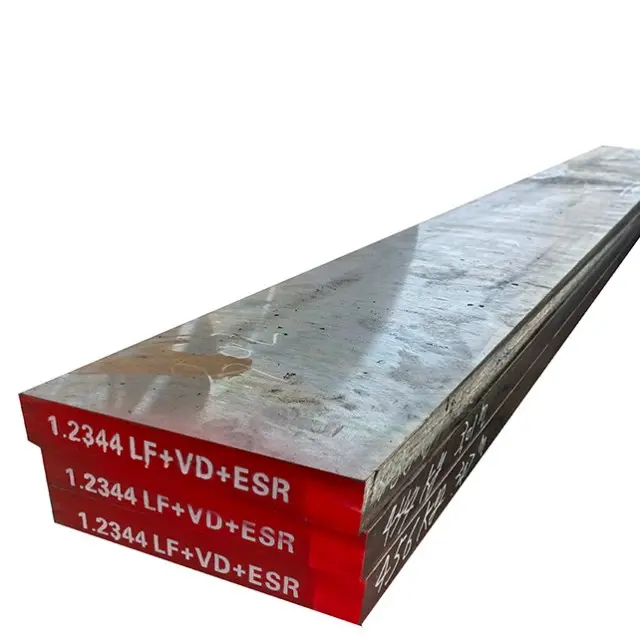

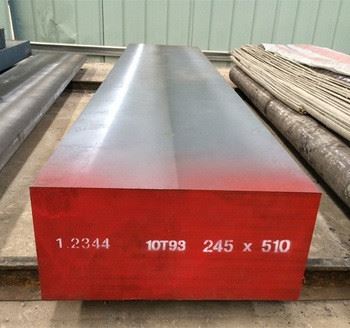

Product Picture
Our factory
Steel Making
Ingot Production
Forged Bars
Machinary
1.2344 Steel Produce Process
1.Steel Smelthing: (Ladle furance / Electric Arc Furnace / Vacuum oxygen ).
2.Steel Ingot: (Ingot Rolling / electroslag remelting furnace).
3.Steel Round Bar: (Steel Round Bar / Steel Plate ).
4.Finished: (Cutting / Milling / Surfacing Griding / Heat treatment / Round Steel Bar Turning).
Packing & Delivery
Packing & Delivery
-
The inner size of container is below:
-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Our Service：
Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc
Cutting: Horizontal band saw cutting / Vertical band sawing machine
Milling: CNC surface grinding machine, NC side boring machine, Band saw,CNC double head machine,Vertical Band saw, CNC milling machine,Double alloy saw blade, wireless remote control crane, Magnetic chuck
Inspection: Hardness / Spectral Analysis / Ultrasonic testing, etc.
