Products Description Die Steel D2 Tool Steel 1.2379 Alloy Steel SKD11 Hot Forming Forging: 1050 to 850℃, slowing cooling in furnace. SKD11 Forged Tool Steel Flat Bar Grade: Cr12Mo1V1/D2/SKD11/1.2379/X160CrMoV12 Characteristic: 1. High hardenability,hardened,high wear resistance. 2....

Send Inquiry

Product Introduction

Products Description

Die Steel D2 Tool Steel 1.2379 Alloy Steel SKD11

Standard	Grade
AISI/SAE	D2
W.Nr/DIN	1.2379
JIS	SKD11
GB	Cr12Mo1V1

Hot Forming

Forging: 1050 to 850℃, slowing cooling in furnace.

SKD11 Forged Tool Steel Flat Bar

Grade: Cr12Mo1V1/D2/SKD11/1.2379/X160CrMoV12

Characteristic:

1. High hardenability,hardened,high wear resistance.

2. High-temperature oxidation resistance and good corrosion resistance

3. Small deformation after heat treatment.

Physical properties:

Critical temperature

Critical point	Ac1	Acm	Arcm	Ar1	Ms
Temperature(Approximation)/°c	810	875	750	695	190

Coefficient of expansion

Temperature/°c	20~100	20 ~200	20~300	20~400
Coefficient of expansion/°c-1	10.5*10-6	11.5*10-6	11.9*10-6	12.2*10-6

Chemical composition:

C	Si	Mn	Cr	Ni	Mo	V	P	S
1.40-1.60	≤0.60	≤0.60	11.00-13.00	11.00-13.00	0.70-1.20	≤1.10	≤0.030	≤0.030

Specification of 1.2379:

Steel plate : thickness : 20-400mm width : 80-1000mm length: 2000-5800mm

Steel round bar: diameter: 50-500mm length : 2000-5800mm

Surface treatment :

Round bar : Black /Grinding / Polished / Peeled / Turned

Steel plate : Black / Milling / Machined

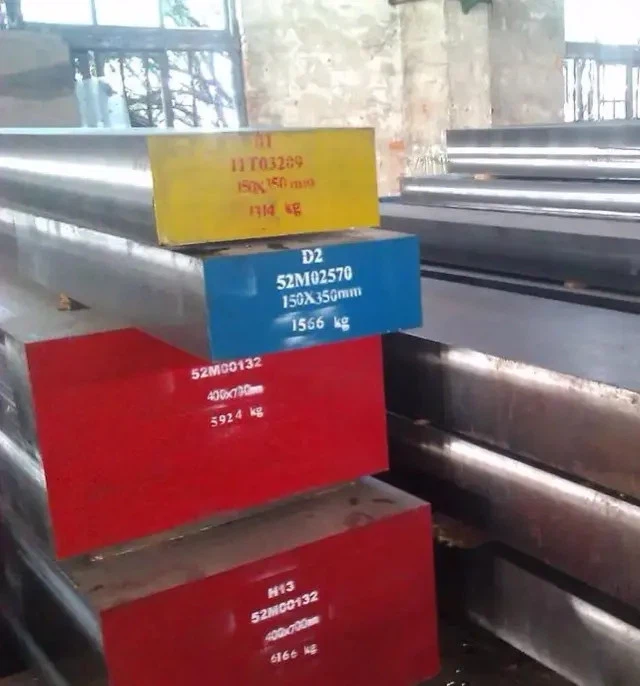

Product Picture

Hf105ce3e8c214752a3b3d205934f32f08jpg960x960

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

Packing & Delivery

1-2083-S136-420tool-die-mold-Steel-flat-Bar

Packing & Delivery

Packing detail: Spray paint in Bundle or as per client demands. Port:Any Chinese Port

The inner size of container is below:

-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)

Our Service

1. Competitive price and quality from our own factory .
2. Best service with 24 hour`s reply .
3. Flexible payment with T/T,L/C , etc .
4. Smooth production ability(1000tons/month).
5. Quick delivery and standard exporting package.
