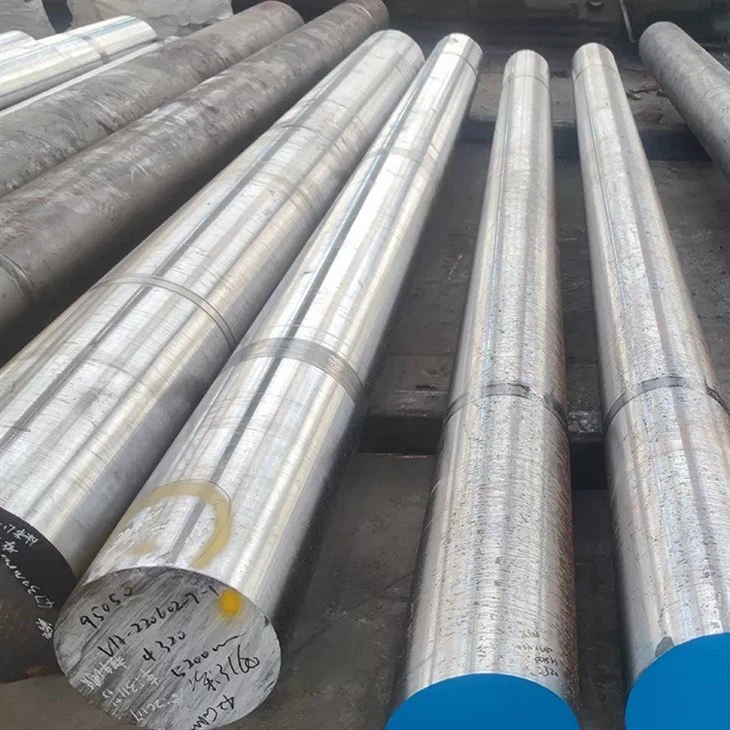

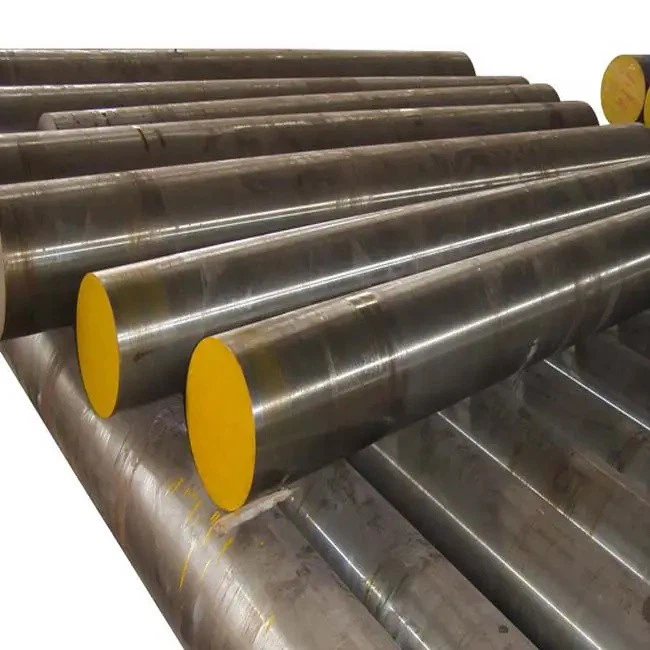

AISI H10 Tool Steel Bar
AISI H10 Tool Steel Bar
AISI H10 Tool Steel Bar

AISI H10 Tool Steel Bar

Products Description H10 features and application scope: H10 hot work die steel, is introduced in the United States of steel corresponding to the domestic 4Cr3Mo3SiV. H10 Steel has good hardenability, toughness and high temperature hardness. And can replace 3Cr2W8V steel to make hot stamping...

Send Inquiry

Product Introduction

Products Description

H10 features and application scope:

H10 hot work die steel, is introduced in the United States of steel corresponding to the domestic 4Cr3Mo3SiV. H10 Steel has good
hardenability, toughness and high temperature hardness. And can replace 3Cr2W8V steel to make hot stamping die, hot forging die, hot rolling die and plastic die.

H10 Steel Standard and Relevant Steel Specifications

Country	USA	German	Japan	British
Standard	ASTM A681	DIN EN ISO 4957	JIS G4404	BS 4659
Grades	H10/T20810	1.2365/32CrMoV12-28	SKD7	BH10

ASTM H10 Tool Steel and Equivalents’ Chemical Composition

Hot Rolled H10/1.2365/SKD7/4Cr3Mo3SiV Hot Work Tool Steel Bar
C	Si
0.35-0.45	0.80-1.20
Mn	P
0.25-0.70	≤0.030
S	Cr
≤0.030	3.00-3.75
Mo	V
2.00-3.00	0.25-0.75

Product Picture

Forged Tool Steel Bars

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

H10 Steel Heat treatment specification and metallographic structure:

Heat treatment specification: quenching,790±15ºC preheating, 1010±6ºC(salt bath) or 1020±6ºC(furnace controlled atmosphere)
heating, insulation 5 ~ 15min, empty

ivery

Forged Tool Steel Bars

Packing & Delivery

Port:Any Chinese Port

The inner size of container is below:

-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
