1.2379 Steel Flat Bar For Knive

Products Description

Cold work 1.2379 tool steel hardens in air with a low order of movement and offers a measure of corrosion resistance while polished. The high chromium percentage gives it nice corrosion-resisting properties in the hardened condition and low temperature.

1.2379 steel mechanical properties are very sensitive to heat treatment.

1.2379  tool steel is provided in diameter round, flat bar, and square block.

Steel Grade	1.2379	Application	Tool steel, Mold Steel
Shape	Flat bar	Standard	AISI, DIN, JIS, GB
Dimension	Thickness 1 - 600 mm	Surface	Black, Peeled, Turned, Grinded
Technique	Hot rolled, Forged	Ultrasonic Test	100% UT Passed



Equivalence

AISI / SAE	DIN /W.Nr	JIS	GB
D2	1.2379	SKD11	Cr12MoV



Chemical Composition (%)

C	Si	Mn	P	S	Cr	V	Mo
1.40 1.60	0.10 0.60	0.10 0.60	≤ 0.030	≤ 0.030	11.00 13.00	0.50 1.10	0.70 1.20



Applications

1.2379 steel flat bar is used to cold work tools applications, it have well wear resistance, normal applications such as Blanking die and rolling die.

1.2379 Tool steels Typical applications as below:

Hunching die, molding die, stamping die, blades, heading tools, long punch, forming roller, grinding roll, master the tools, ball, punch, perplexing extrusion die, drawing die, compound die, thread rolling die, Shear Blades, Burnishing Tools, Knurls, and other wear parts.

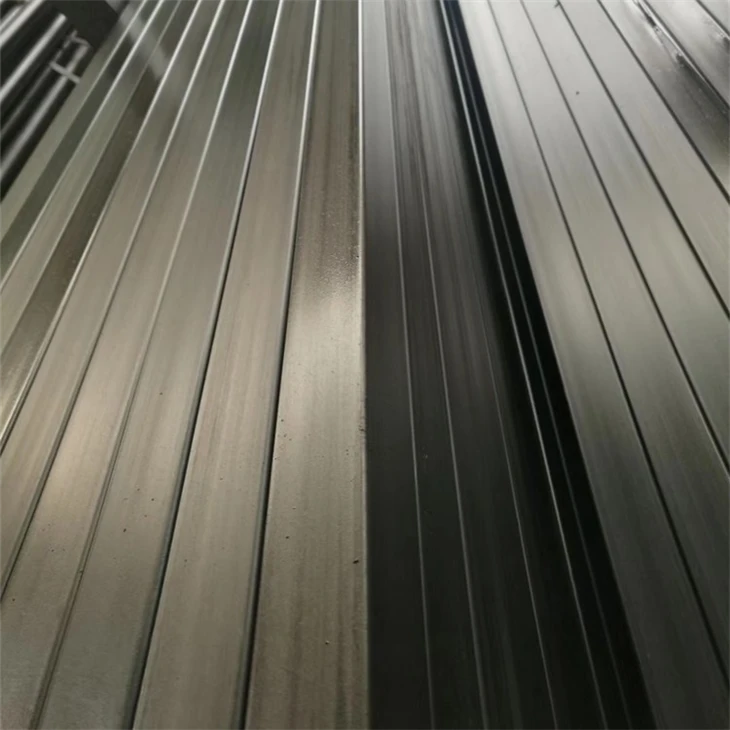

Product Picture

What we can offer?

-We offer a wide range of steel products in a wide variety of dimensions and executions, according to the common international specifications or customize.

-Machining and heat treatment are available.

-Also, we advise you in choosing the right materials.

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

Notes:

1) Available Size:
-Round: Dia. 20-1000 mm
-Flat: T. 1-120 mm x W. 20-810 mm
-Block: T. 80-1200 mm x W. 100-1600 mm

2) Delivery condition:
-Smelting: EAF+LF+VD (+ESR)
-Making: Hot rolled, Cold rolled, Forged, Cold Drawn
-Cold drawn: 10-100 mm
-Peeled: 30-160 mm
-Grind: 10-600 mm
-Turned: 130-1600 mm
-Hot rolled: 20-280mm
-Hot forged: 130-1000mm
-Heat Treatment: Untreated, Annealing, N+T, Q+T

-Surface: Black, Peeled, Turned, Milled, Grinded, Polished
