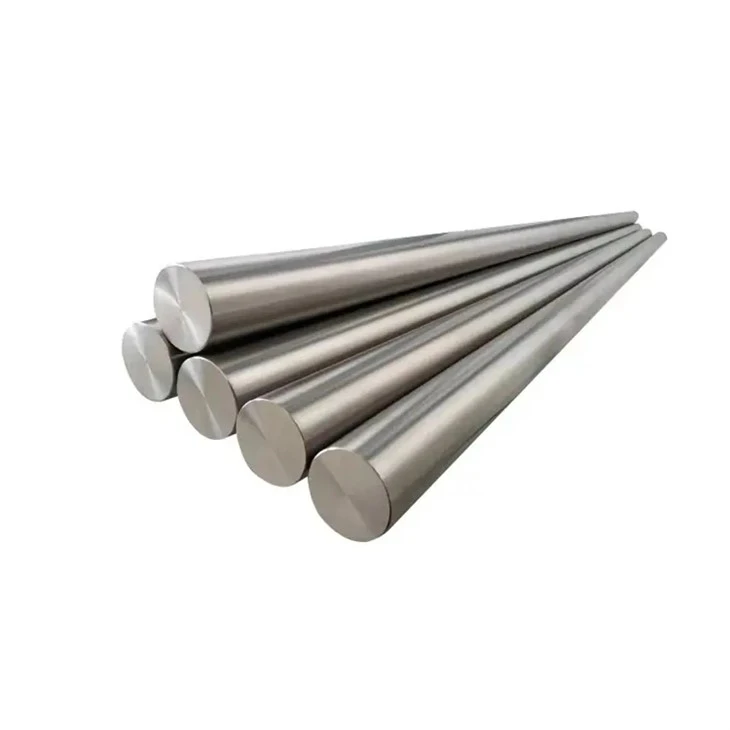

L605 Nickel Alloy Round Bar

UNSR30605 nickel Alloy rod is designed for high temperature applications, with excellent resistance to oxidation, corrosion, and wear. Made from high-purity raw materials, this bar is ideal for use in harsh environments where reliability is crucial.

GH605 (L605 UNSR30605)
GH605 is a cobalt-based superalloy strengthened by 20CR and 15W solution treatment. It has moderate creep and rupture strength
below 815 ° C, oxidation resistance below 1090 ° C, forming and welding properties.
It is suitable for manufacturing hot-end high-temperature components requiring medium strength and high temperature oxidation
resistance, such as engine combustor and guide vanes.
L605 Equivalent grade
L605, HS25, WF-11, ALS1670, UNSR30605 , KC20WN (France)
L605 Chemical composition
C: 0.05～0.15 Cr:19.0～21.0 Ni:9.0～11.0 W:14.0～16.0 Co :Allowance Mn:1.0～2.0 Fe≤3.0 Si≤0.40 P≤0.04 S≤0.03
Physical and chemical properties
Thermal performance
The melting temperature ranges from 1330 °C to 1410 °C
Coefficient of linear expansion
Density
ρ=9.13g/cm3
Magnetic properties
The alloy is non-magnetic.
Metallographic structure
After aging, some carbides and intermetallic compounds, including M7C3, M23C6, M6C, A-CO3W, β-Co3W, L-Co2W and μ-Co7W6, can be
produced
Application Overview and special requirements
It is mainly used in imported machines for manufacturing high-temperature components such as guide vane, Turbine Outer Ring, outer
wall, Vortex, sealing sheet and so on. The alloy is sensitive to silicon content, which can induce the formation of Co2w-type
l-phase when exposed between 760 ° C and 925 ° C, thus decreasing the plasticity of the alloy at room temperature. Therefore, the
silicon content in the alloy should be controlled to less than 0.4% .
