1.2343 Steel Equivalent

1.2343 Steel Equivalent Grades:
H11/SKD6/X37CrMoV5-1
1.2343 Steel chemical composition includes 0.35% to 0.43% carbon, 4.80% to 5.50% chromium, 1.10% to 1.50% molybdenum, 0.30% to 0.50% vanadium, and small amounts of silicon, manganese, and phosphorus. This combination provides ideal strength and toughness under high...

Send Inquiry

Product Introduction

Products Description

1.2343 Steel chemical composition includes 0.35% to 0.43% carbon, 4.80% to 5.50% chromium, 1.10% to 1.50% molybdenum, 0.30% to 0.50% vanadium, and small amounts of silicon, manganese, and phosphorus. This combination provides ideal strength and toughness under high temperature and pressure, making it an efficient hot work tool steel.
The 1.2343 Steel Equivalent grade X37CrMoV5-1 material is suitable for manufacturing molds and cutting tools, and can be used in various molding processes, including injection molding, extrusion, and thin film blow molding. It can also be used to manufacture tools such as die-casting molds, extrusion molds, and hot plate molds. Compared with ordinary tool steel, 1.2343 steel has better wear resistance, longer lifespan, and higher hardness and strength.

1.2343 Steel Equivalent Grade:

AISI	DIN /W.Nr	JIS	EN
H11	1.2343	SKD6	X37CrMoV5-1

1.2343 Chemical Composition (%)

ASTM

DIN

H11

1.2343

X37CrMoV5-1

0.38-0.43

0.8-1.0

0.2-0.4

≤0.015

0.4-0.6

4.75-5.25

1.2-1.4

Mechanical Properties

Yield Strength Rp0.2(MPa)	Tensile Strength Rm(MPa)	Impact rate	Elongation	Reduction of area	Delivery Condition	Hardness(HBW)
527 (≥)	953 (≥)	44	22	23	Solution and Aging, Annealing, Ausaging, Q+T,etc	313

Product Picture

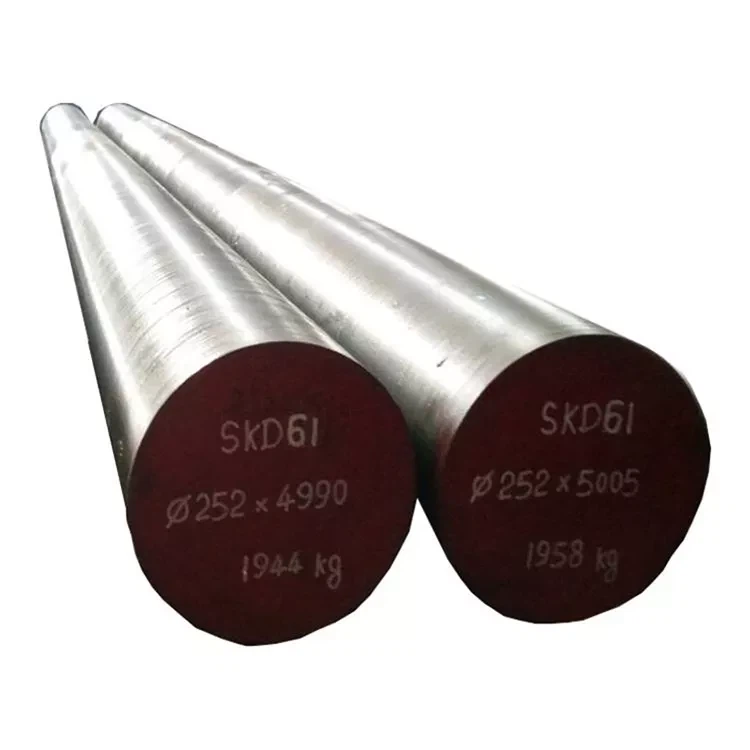

1.2343 forged steel bar 1.2343 round bar

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

Forging of 1.2343 Steel Equivalent Material X37crmov5-1

X37crmov5-1 steel are forged at 1121°C (2050°F). For this type of steels, forging below 899°C (1650°F) is not preferable.

1.2343 Steel Heat Treatment

Annealing

Anneal at 871°C and slow cool at 4.4°C per hour or less in the furnace.

Tempering

Temper at 537°C to 648°C for Rockwell C hardness of 54 to 38. Double tempering for one hour each time at the selected tempering temperature is recommended.

1.2343 forged steel bar 1.2343 round bar

Packing & Delivery

1.2343 steel
