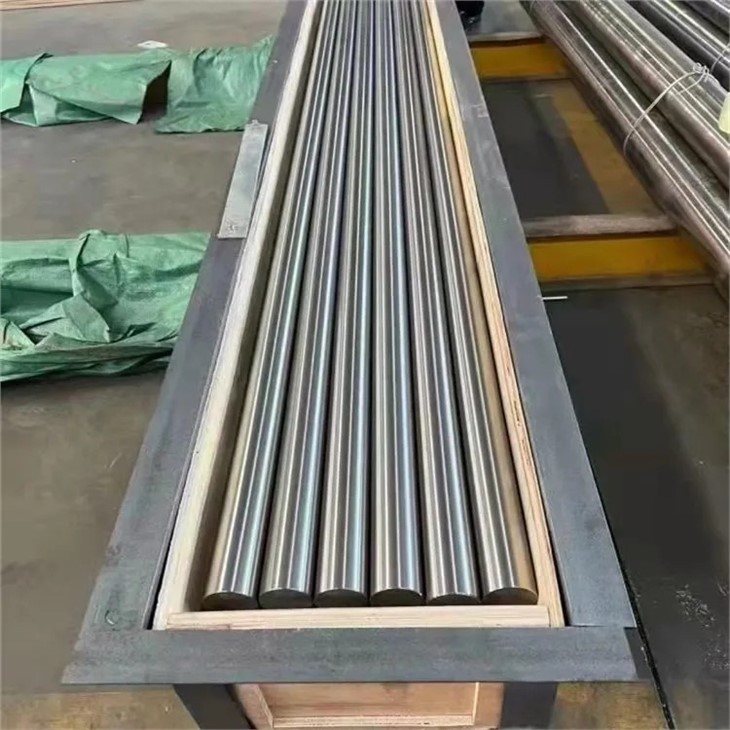

Name: FCA Bars 0Cr25Al5 Fecral Alloy Bar
Brand: Huitai
SKU: 204357012

0Cr25Al5 heating alloy is a kind of iron-chromium-aluminum composition with high resistivity, low resistivity, high working temperature, good oxidation resistance at high temperature, and the highest applicable temperature is as high as 1250 degrees.The alloy is mainly used to make ceramic...

Send Inquiry

Product Introduction

Introduction:

Welcome to the world of FCA Bars 0Cr25Al5 Fecral Alloy Bars, made by one of the top manufacturers located in China. Our company specializes in producing quality industrial products that are used by various industries around the world.

The FCA Bars 0Cr25Al5 Fecral Alloy Bars are one of our most popular products because of their unique properties and excellent performance. In this product introduction, we will take a closer look at the various aspects of this product that make it such an attractive option for merchants looking to purchase industrial products.

Properties:

The FCA Bars 0Cr25Al5 Fecral Alloy Bars are made of an alloy material that is primarily composed of iron, chromium, and aluminum. This combination of metals gives this material its unique properties, including:

- High temperature resistance: This alloy is capable of withstanding high temperatures up to 1350°C, making it an ideal choice for use in high-temperature industrial applications.

- Corrosion resistance: Fecral Alloy Bars are highly resistant to corrosion, making them an ideal choice for use in corrosive environments, such as chemical and pharmaceutical plants.

- High electrical resistance: This material has high electrical resistance, making it ideal for use in electrical heating applications.

- High strength: FCA Bars 0Cr25Al5 Fecral Alloy Bars are incredibly strong and durable, ensuring that they can withstand tough conditions and remain functional for extended periods.

Applications:

FCA Bars 0Cr25Al5 Fecral Alloy Bars have a wide range of applications, including:

- Electrical heating elements: This material is an essential component of electrical heating elements and is commonly used in industrial and household electric heating applications.

- Chemical and pharmaceutical plants: The high-temperature and corrosion-resistant properties of FCA Bars 0Cr25Al5 Fecral Alloy Bars make them a popular choice for use in chemical and pharmaceutical plants.

- Furnace elements: This material is commonly used in furnace elements due to its high-temperature resistance and excellent performance.

- Aerospace and automotive industries: FCA Bars 0Cr25Al5 Fecral Alloy Bars are used extensively in the aerospace and automotive industries due to their high strength and durability.

Advantages:

There are several advantages to using FCA Bars 0Cr25Al5 Fecral Alloy Bars, including:

- High temperature resistance: Fecral Alloy Bars can withstand high temperatures, making them ideal for use in high-temperature industrial applications.

- Corrosion resistance: This material is highly resistant to corrosion, ensuring that it can withstand harsh environments and remain functional for extended periods.

- Easy to shape: FCA Bars 0Cr25Al5 Fecral Alloy Bars are easy to shape, making them versatile and ideal for a wide range of applications.

- Long-lasting: This material is highly durable and can withstand tough conditions, making it an excellent long-term investment for merchants.

Conclusion:

In conclusion, FCA Bars 0Cr25Al5 Fecral Alloy Bars are a popular choice for merchants looking for high-quality industrial products. With their unique properties and excellent performance, they are ideal for use in a wide range of applications, making them a versatile and reliable option. If you are looking for a quality product that can withstand harsh conditions and stand the test of time, FCA Bars 0Cr25Al5 Fecral Alloy Bars are an excellent option to consider.

product-755-350

Product Description

0Cr25Al5 resistance alloy is a kind of iron, chromium and aluminum with high resistivity, low resistivity, high working temperature, good oxidation resistance at high temperature, and the highest applicable temperature is up to 1250 degrees. The alloy is mainly used to make ceramic electric cookers, industrial furnaces, and various electric heating elements.

Grade	0Cr25Al5
Size	10-60mm
Surface	oxidized
Resistivity	1.42±0.07μΩ.m
Highest temperature	1250ºC
Density	7.1g/cm³
Tensile strength	750N/mm²
Elongation	≥12%

Grade	Highest temperature	Resistivity	Melting point	Tensile strength	Elongation
0Cr21Al4	1100ºC	1.23±0.06μΩ.m	1500ºC	750	≥12
0Cr25Al5	1250ºC	1.42±0.07μΩ.m	1500ºC	750	≥12
0Cr21Al6NbCo	1350ºC	1.43±0.07μΩ.m	1510ºC	750	≥12
0Cr27Al7Mo2	1400ºC	1.53±0.07μΩ.m	1520ºC	750	≥10
KSC	1350ºC	1.44±0.05μΩ.m	1510ºC	750	≥16
Cr20Ni80	1200ºC	1.09±0.05μΩ.m	1400ºC	750	≥20
Cr15Ni60	1150ºC	1.12±0.05μΩ.m	1390ºC	750	≥20
Cr20Ni35	1100ºC	1.04±0.05μΩ.m	1390ºC	750	≥20
Cr20Ni30	1100ºC	1.04±0.05μΩ.m	1390ºC	750	≥20

Grade	Chemical Composition%
	C	P	S	Mn	Si	Cr	Ni	Al	Fe
	≤				Si	Cr	Ni	Al	Fe
0Cr21Al4	0.12	0.025	0.025	0.7	≤1.0	17-21	≤0.6	3-4	balance
0Cr25Al5	0.06	0.025	0.02	0.5	≤0.6	23-26	≤0.6	4.5-6.5	balance
0Cr21Al6Nb	0.05	0.025	0.02	0.5	≤0.6	21-23	≤0.6	5-7	balance
0Cr27Al7Mo2	0.05	0.025	0.02	0.2	≤0.4	26.5-27.8	≤0.6	6-7	balance
Cr20Ni80	0.08	0.02	0.015	0.6	0.75-1.6	20-23	balance	<0.5	≤1.0
Cr15Ni60	0.08	0.02	0.015	0.6	0.75-1.6	15-18	55-61	<0.5	balance
Cr20Ni35	0.08	0.02	0.015	1.0	1-3	18-21	34-37	-	balance
Cr20Ni30	0.08	0.02	0.015	1.0	1-3	18-21	30-34	-	balance

The feature of our resistance alloy products :composition uniformity,high resistivity,accurate size,long service life,we can do all kinds of spiral shape wire accordding to your drawings,and our engineers will give you reasonable advices.They are widely used in small electric furnace,muffle furnace,all kinds of ovens,heating air-condition equipment,electrical heated tube,and home appliances etc.

Application area

Product packaging

202003111557389450606

Our services

* OEM manufacturer * We will deliver the goods to the warehouse of the customer's agent in any city in China. * Terms of delivery: EXW, FCA, FOB, CIF, CPT, DAP * Mode of transport: Sea, Auto, Railway, Air and Express * Payment terms: Bank Transfer, Western Union, PayPal, Alipay* Quality Certificate: In order to improve the quality of products and services, with each order we provide a quality certificate for goods, which includes measured data - chemical composition, electrical resistivity, tensile strength, elongation, melting number, etc.
