Material 1.4057
1.4057/AISI431/X17CrNi16-2/1Cr17Ni2
Products Description
MARTENSITIC STAINLESS STEEL
Material 1.4057 / x17crni16-2 is mainly used in aerospace, marine, food, nitrogen, paper and food industries for particularly loaded parts of pumps, the production of screws, nuts, parts of valves of installations, shafts, sleeves or spindles. The steel is a special grade used for the manufacture of aircraft parts.
| X17CrNi16-2 Equivalent Grades | ||||||
| ISO | DIN | EN | ||||
| X17CrNi16-2 | ISO683-17(2003) | 1.4057 | DIN17400 | / | EN 10088-1 | |
| USA | Japan | China | ||||
| AISI431 | ASTM A276 | / | JIS G 4303 | 1Cr17Ni2 | GB1299-2000 | |
Chemical Compositions
The chemical composition of Material 1.4057 x17crni16-2 Steel is outlined in the following table.
| CHEMICAL COMPOSITION | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | V |
| ≤0.20 | ≤1.00 | ≤1.00 | ≤0.030 | ≤0.015 | 15.00-17.00 | 1.50-2.50 | / | / |
Mechanical Properties
Material 1.4057 is a low-carbon chromium-nickel corrosion-resistant steel with the following mechanical properties:
- Tensile strength (σb MPa): in the quenching and tempering state, ≥1080 MPa. 1
- Yield strength (σ0.2 MPa): ≥205 MPa. 2
- Elongation (δ5%, %)): ≥10% in quenching and tempering state.
- Diameter reduction rate (ψ%, %): ≥60%.
- Impact toughness (αKU2 J/cm²): ≥100 J/cm² in quenched and tempered state.

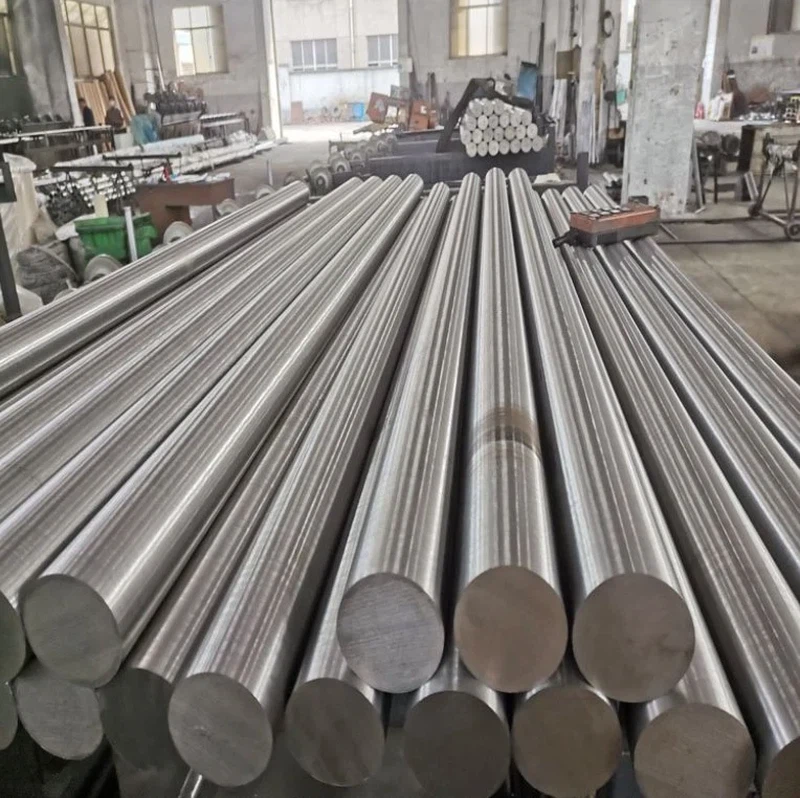

Material 1.4057 x17crni16-2 Steel Bar Photo
Our Factory Workshops
Steel Making
Ingot Production
Forged Bars
Machinary
Sichuan Huitai Special Metals co.,ltd
As a traditional manufacturer of high-quality special metal materials, Huitai Special Metals has been committed to the research, development and production of special tool steel, die steel and alloy steel since 1997. Especially for High-strength alloy steel, Roll and Gear steel, we have very stable production process and quality assurance on it.
Advantages
Complete Production Line: Electric Power,Smelting,Forging,Heat Treatment,Machining, Physical&Chemical Test Center.
Competitive Grades
1.2344,1.2343,1.2083,1.2085,1.2379,1.2316,1.2360,1.2365,
1.2367,1.2714,1.4057,15-5PH,616,630(17-4PH),irregular forgings,etc
High-Quality Customized Services
Wide Range Specifications: Diameter 5-800mm; Thickness 1-800mm; Width 100-1800mm
Production Process
SPECIFICATION:
1.4057 x17crni16-2 Steel Bar containing 13% of Chromium retains much better corrosion resistance due to the small amount of nickel addition and the increased content of chromium in the composition. Material 1.4057 shows resistance to nitricacid, phosphoric acid, low concentrations of formic and acetic acids, sea water, and most nitrates.
Din 1.4057 steel also has good corrosion resistance and certain high temperature resistance. It has good corrosion resistance to oxidizing acids, most organic acids and aqueous solutions of organic salts, and can inhibit the brittleness of high-temperature tempering under certain conditions.
Quality Control
We make sure that our produced Material 1.4057 x17crni16-2 Steel Bars are made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers.
Mill Test Certificate
EN 10204/3.1 with all relevant data regarding to chemical compositions, mechanical properties and results of testing.
