Product Introduction

Products Description

Hastelloy C-22 alloy is a nickel-chromium-molybdenum-tungsten alloy with better overall properties than other existing nickel-chromium-molybdenum alloys like HASTELLOY C-276, C4 alloy and 625 alloy. alloy c22 seamless pipe has good resistance to pitting corrosion, crevice corrosion and stress corrosion cracking, and also has excellent resistance to oxidative aqueous media, including wet chlorine, nitric acid or oxidizing mixed acids containing chloride ions.

Hastelloy C-22 Equivalent Grades

Material	GB	UNS	W.Nr.	JIS	Other Grades
Hastelloy C22 HC22 Alloy C22	NS338 NS3308	N06022	2.4602	NW6022	NiCr21Mo13Fe4W3 55Ni-21Cr-13.5Mo

Chemical Compositions (%)

Hastelloy Grade	Hastelloy C-22
C≤	0.015
Mn≤	0.5
P≤	0.02
S≤	0.02
Si≤	0.08
Cr≤	14.0-18.0
Ni≤	the base
Mo	12.5-14.5
Cu
N	W:2.5-3.5
Nb
Other	V:≤0.35 Co:≤2.5 Fe:2.0-6.0

Product Photos

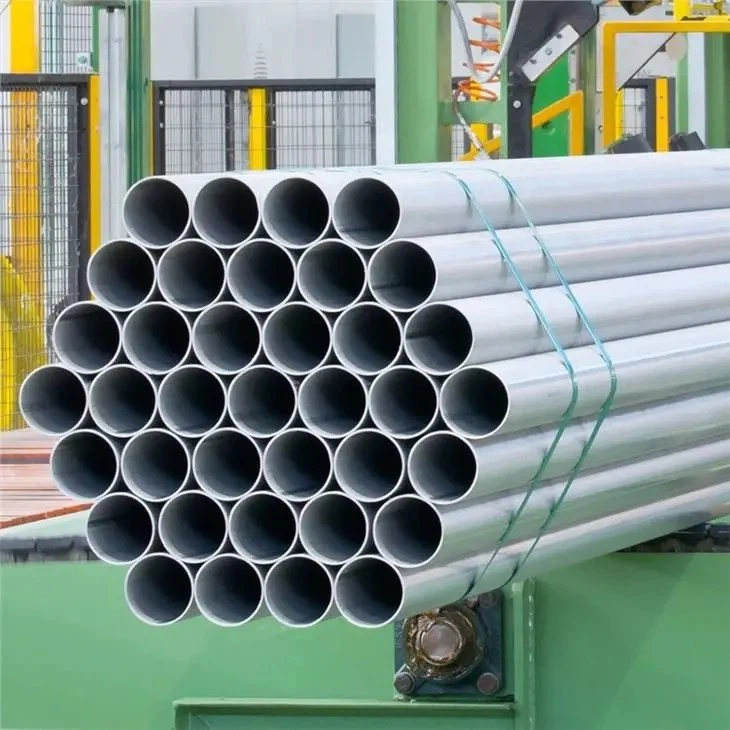

Hastelloy C22 Seamless Pipes

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

Complete Set of Manufacturing and Testing Equipment Guarantee the Stable Supply and Product Quality

We have production lines from vacuum smelting, electroslag remelting, forging, to hot rolled, machining, heat treatment, cold rolled, cold drawn, etc. The main equipment includes 1T vacuum smelting furnace, 0.6T vacuum consumable furnace, 0.5T to 3T electroslag remelting furnace, 5T electrohydraulic hammer, 2T forging air hammer, etc.

Our Group is equipped with advanced physical and chemical testing equipment, including chemical analysis, spectral analysis, ultrasonic testing, mechanical testing, high temperature tensile testing, impact testing, hardness testing, bending testing, metallographic analysis and other testing equipment. We have strong professional technical force and new product research and development capabilities. We have applied for 20 patents, obtained six invention patents and more than 10 utility model patents.

Hastelloy C22 Seamless Pipe

alloy c22 seamless pipe are widely used in petroleum chemistry, electric power, machinery manufacturing, automobile manufacturing, aerospace, offshore drilling, military and other industrial fields.

Packing & Delivery

Hastelloy C22 Seamless Tube

Packing & Delivery

alloy c22 seamless pipe Packing detail: Spray paint in Bundle or as per client demands. Port:Any Chinese Port

The inner size of container is below:

-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)

Hastelloy C22 Seamless Coil Pipes
