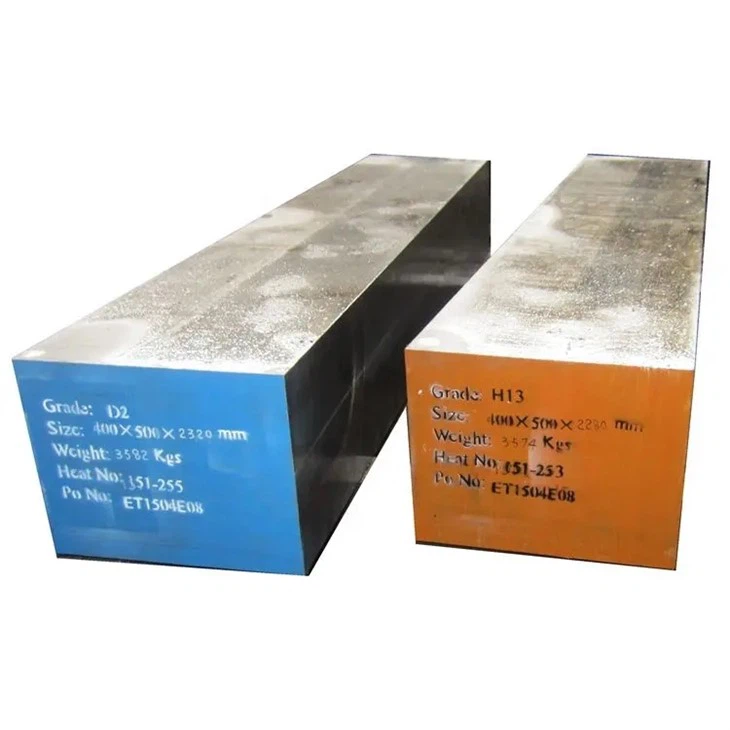

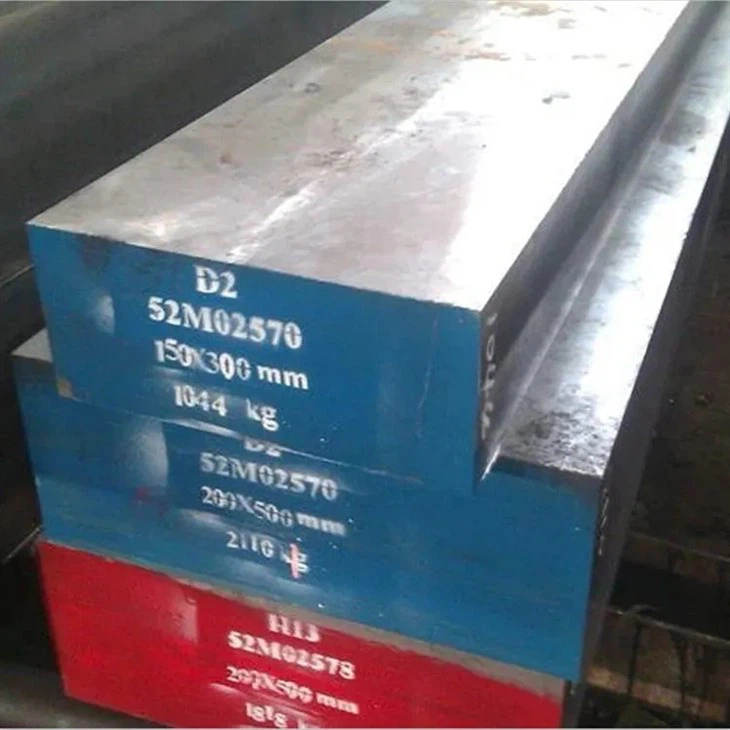

AISI D2 Forged Tool Steel Plate
AISI D2 Forged Tool Steel Plate
AISI D2 Forged Tool Steel Plate
AISI D2 Forged Tool Steel Plate

AISI D2 Forged Tool Steel Plate

Products Description AISI D2 Applications: Excellent toughness and suitable for bath nitriding. Cold extrusion tools, trimming, cutting and stamping tools for sheet thickness upto 6mm, precision cutting tools for sheet thickness up to 12.2 mm. Blaniking and punching tools, wood working tools,...

Send Inquiry

Product Introduction

Products Description

AISI D2 Applications: Excellent toughness and suitable for bath nitriding. Cold extrusion tools, trimming, cutting and stamping tools for sheet thickness upto 6mm, precision cutting tools for sheet thickness up to 12.2 mm. Blaniking and punching tools, wood working tools, shear blades for cutting light gauge material, thread rolling dies , drawing, deep drawing, Pressure pads and highly wear-resistant plastic moulds.

AISI D2 Tool Steel Material character:

High carbon and high chromium, ledeburitic 12 % Cr alloyed cold work tool steel, excellent abrasion resistance due to a large volume of carbides in the microstructure, high cutting ability with edge holding properties, high compression strength, excellent deep hardenability and toughness properties, dimensional stability during heat treatment, high resistance to softening at elevated temperatures. Suitable for nitriding and electrical discharge machining.

ADVANTAGES:

Very high wear resistance.
Excellent size stability in heat treatment.
Deep hardening

Steel Grade:

DIN-1.2379,%

C	Si	Mn	P	S	Cr	Mo	V
1,50 - 1,60	0,20 - 0,60	0,15 - 0,45	<= 0,030	<= 0,030	11,00 - 12,00	0,60 - 0,80	0,90 - 1,10

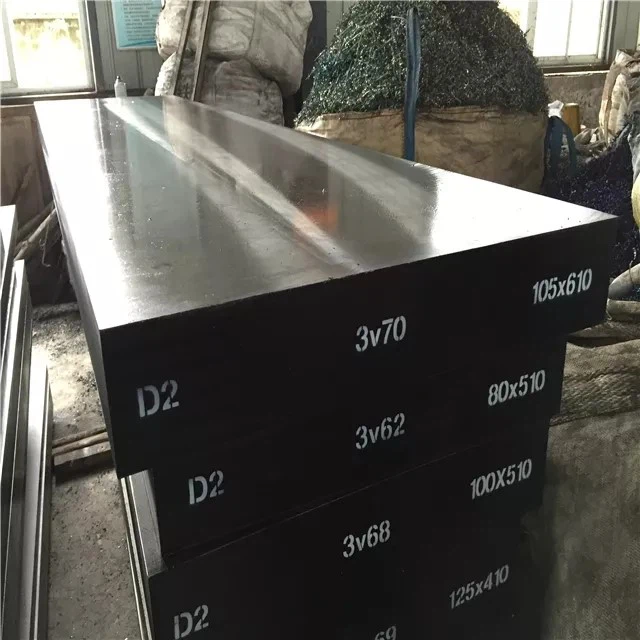

Product Picture

12379 tool steel

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

AISI D2 Steel Produce Process

product-753-438

Packing & Delivery

N78WZZTLNSZEU0QODUKF

Packing & Delivery

Packing detail: Spray paint in Bundle or as per client demands. Port:Any Chinese Port

The inner size of container is below:

-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)

Hot Tags: aisi d2 forged tool steel plate, China aisi d2 forged tool steel plate manufacturers, suppliers, factory, 1 2311 Mould Steel Bar, 1 2436 Cold Work Tool Steel Round Bar, 1 2379 Tool Steel Round Bar, 1 2343 Tool Steel Round Bar, 1 2714 Die Steel Round Bar, Die Steel Bar

1.2379 Hot Rolled Steel Flat Bar

D2 Tool Steel Block

	GB/T1299-2000	DIN	AISI
Annealed (HB)	<=255	<=250	255~217
