1.2510 Tool Steel Bar
1.2510 Tool Steel Bar

1.2510 Tool Steel Bar

Name: 1.2510 Tool Steel Bar
Brand: Huitai
SKU: 212003282

1.2510 Steel Equivalent Grades Chemical Composition Product Description Cold work 1.2510 tool steel Supply Range 1.2510 Tool Steel Produce Process Electric-Furnace Smelting(EF)→Ladle Furnace(LF)→Vacuum Degassing(VD)→ Argon protected ingot →Multidirectional Forging → (Concave forging...

Send Inquiry

Product Introduction

1.2510 Steel Equivalent Grades

GB	DIN	SWEDEN	JIS
9CrWMn	1.2510	DF-2	SKS3

Chemical Composition

Grade	C	Si	Mn	P≤	S≤	Cr	Mo	V	W
1.2510	0.90-1.05	0.15-0.35	1.00-1.20	0.035	0.035	0.50-0.70	-	0.05-0.15	-
9CrWMn	0.85-0.95	≤0.40	0.9-1.20	0.03	0.03	0.50-0.80	-	-	0.50-0.80

Product Description

Product Name	1.2510 Tool Steel Bar
Diameter	5mm-800mm
Length	100mm-1200mm
Surface	Polished,Black
Delivery Condition	Heat Treatment ,Cold Drawn ,forged
Advantages	Dia< 10.00 mm, cold drawn, on request also ground; ISO h8 Dia > 10.00 mm, cold drawn, on request also ground; ISO h9 Tighter tolerances on request Out of roundness standard: ½ of diameter tolerance
Finish Line	Straightening machines Milling and chamfering devices Surface control (Circograph, Circoflux) Ultrasonic control device Antimixing control - spectrotest devices Packaging, marking
Mechanical Property	Delivery status: Tensile strength (Rm): 570 -820 MPa, size depending
Bar Processing	Heat treatment: soft annealing, normalising, isothermal, spheroidising and stress relieving treatments, quenching and tempering Peeling

Cold work 1.2510 tool steel Supply Range

1.2363 A2 Cold Work Alloy Mould Steel Sheet

1.2510 Tool Steel Produce Process

Electric-Furnace Smelting(EF)→Ladle Furnace(LF)→Vacuum Degassing(VD)→ Argon protected ingot →Multidirectional Forging → (Concave forging →)Normalizing+Hydrogen Diffusion Annealing → Ultrasonic Flaw Detection →Queching+Tempering Prehardened High Mold Steel Material 1.2581 Tool and Die Steel Mould Steel H21 SKD5 Round Bar Steel

1.2510 Steel Performance	(1) With excellent machinability, hardened, the size is extremely stable, hardened, the surface has a very high hardness.
	(2) With high toughness, so excellent anti-wear ability and easy forging and quenching.
	(3) It can be widely used in cutting, cold stamping and forming tools; such as notch die, cold stamping die, various gauges, reamers, mold bushings, and plastic small modules.
	(4) Annealing hardness:230HB

Product Picture

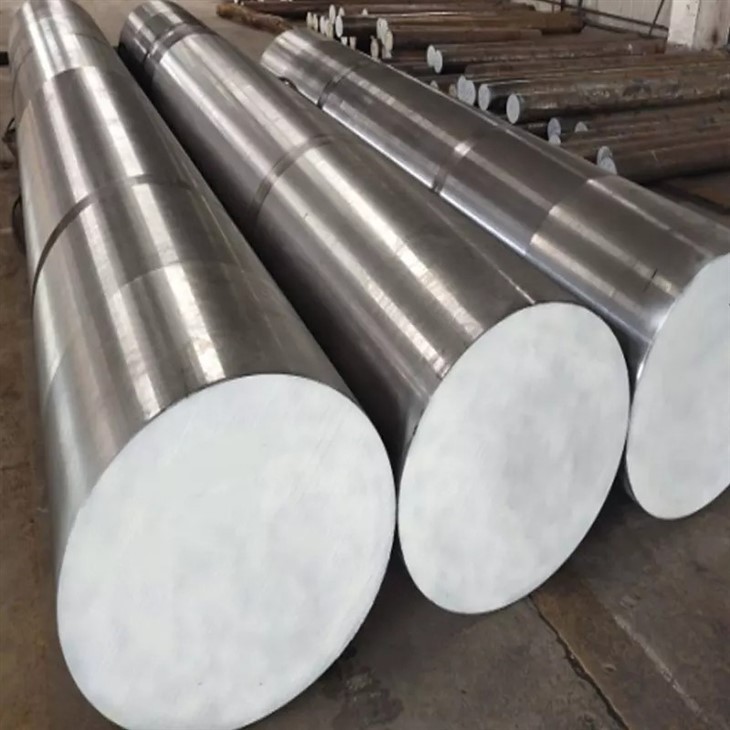

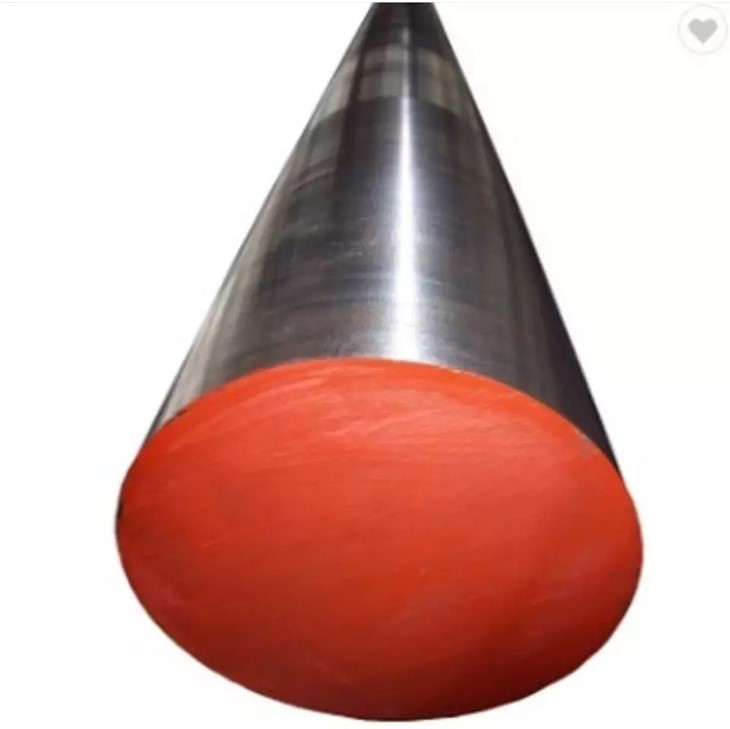

1.2510 Tool steel round bar

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

1.2510 Tool Steel Bar Application

* Automatic lathe processing, metal stamping parts processing;
* Electronic industry, optical fiber connector, optical disc drive, scanner, medical equipment;
* Household appliances, instrumentation industry;
* Office equipment (computers, photocopiers, cameras, fax machines, etc.);
* Watch components, glasses;
* Electronic terminal pin, timer, carburetor;
* Decorations, light ornaments, cars, motorcycles, chains;
* Clean car sweepers and toys;
* Pens, handbag accessories, belt buckles, fishing gear, etc .;
* Studs, screws, nuts, pipe joints, spring seats, etc.

Delivery

D6 Tool steel bar

Packing & Delivery

Port:Any Chinese Port

The inner size of container is below:

-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)

FAQ

1. who are we?
We are based in Sichuan, China, sell to North America(60.00%),Western Europe(14.00%),South America(6.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
copper,aluminum,mould steel,titanium,custom machine parts

4. why should you buy from us not from other suppliers?
Shichuan Huitai Special Metals Co., Ltd. has more than 25 years of production experience. With advanced precision production equipment and modern large warehouses, has a stockpile of 200,000 tons of goods, has a number of long-term stable cooperative customers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
