1.2379 Forged Tool Steel Flat Bar
1.2379 Forged Tool Steel Flat Bar
1.2379 Forged Tool Steel Flat Bar

1.2379 tool steel

1.2379 Forged Tool Steel Flat Bar is frequently used in cold work applications requiring toughness at relatively high hardness.
Equivalent Grade:AISI D2/JIS SKD11/GB Cr12Mo1V1.
hardness select 60-65HRC.
Ferrous metal die, hardness select 40-50HRC.

Send Inquiry

Product Introduction

1.2379 tool steel flat bar features

a. High wear resistance
b. High compressive strength
c. Good dimensional stability
d. Good processability
e. Excellent resistance to temper softening
f. Good toughness

1.2379 material equivalent

Chinese	American	German	Japanese
GB	AISI	DIN	JIS
Cr12Mo1V1	D2	1.2379	SKD11

Chemical Composition

Grades	C	Si	Mn	P	S	Cr	Mo	V
1.2379	1.5-1.6	0.1-0.4	0.15-0.45	≤0.003	≤0.03	11-12	0.6-0.8	0.9-1.1
D2	1.4-1.6	0.3-0.5	0.3-0.5	≤0.03	≤0.03	11-13	0.7-1.2	0.8
Cr12Mo1V1	1.4-1.6	≤0.6	≤0.6	≤0.03	≤0.03	11-13	0.7-1.2	0.5-1.1
SKD11	1.4-1.6	≤0.4	≤0.6	≤0.03	≤0.03	11-13	0.8-1.2	0.2-0.5

1.2379 tool steel is a high-performance cold working mold steel with excellent wear resistance, toughness, and thermal hardening. It is suitable for manufacturing high-precision and long-life molds.Check 1.2379 material properties as following:

1.After appropriate heat treatment, 1.2379 hardness can reach HRC60-62, with excellent wear resistance.
2. 1.2379 steel has good toughness and can resist the impact load generated by the mold during operation.
3. din 1.2379 can maintain high thermal hardness, good wear resistance, and can withstand high working temperatures.
4. The molds produced with 1.2379 steel has high strength and can withstand significant pressure and cutting forces.

1.2379 heat treatment

Quenching			Tempering
Heating Temperature/ºC	Cooling	1.2379 hardness/HRC	Heating Temperature/ºC	Cooling	Hardness/HRC
980-1040	Oil or air	60-65	180-220	Air	60-64
1060-1100	Oil or air	60-65	510-540	Air	60-64

1.2379 Forged Tool Steel Flat Bar Produce Process

Electric-Furnace Smelting(EF)→Ladle Furnace(LF)→Vacuum Degassing(VD)→ Argon protected ingot →Multidirectional Forging → (Concave forging →)Normalizing+Hydrogen Diffusion Annealing → Ultrasonic Flaw Detection →Queching+Tempering Prehardened High Mold Steel Material 1.2581 Tool and Die Steel Mould Steel H21 SKD5 Round Bar Steel

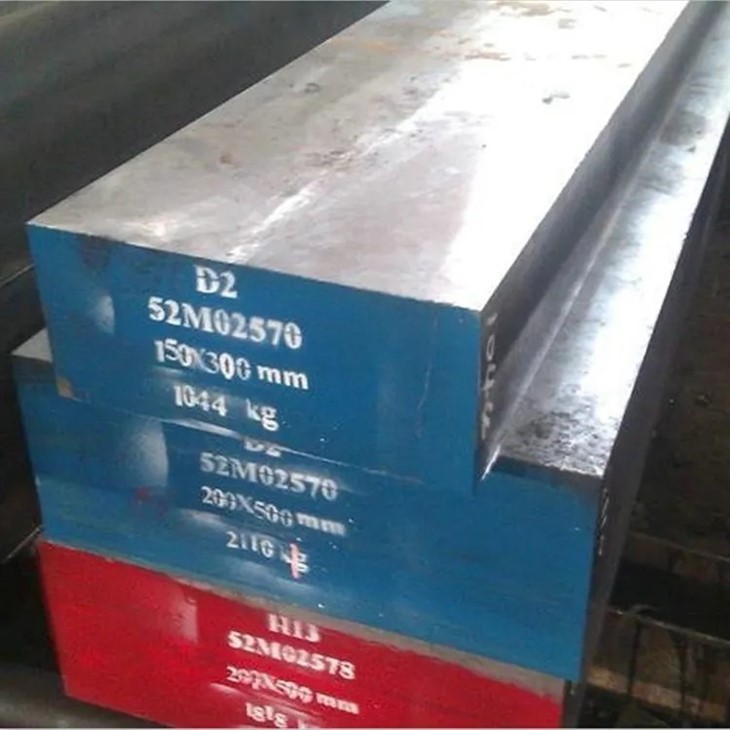

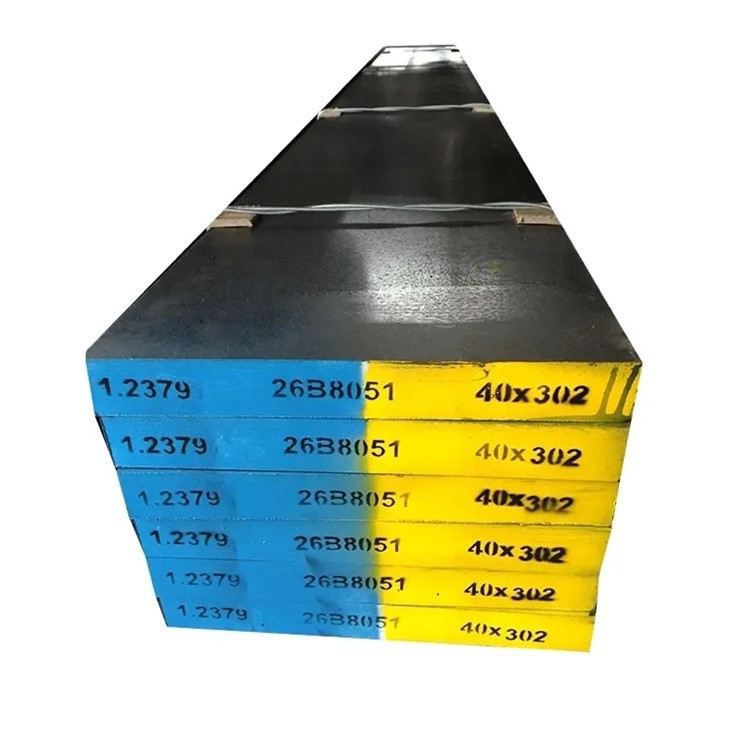

Product Picture

din 1.2379

Our factory

Steel Making

Ingot Production

Forged Bars

Machinary

Applications

1.2379 tool steel thin sheet with a thickness of not more than 2mm, high-efficiency blanking die, punching die and stamping die
1.2379 forged tool steel flat bar is used to produce various scissors, inlaid blades, wood working blades
Thread rolling die and wear-resistant slider
Cold heading mould, thermosetting resin molding die
Deep drawing die, cold extrusion die

Delivery

1.2379 material

Packing & Delivery

Port:Any Chinese Port

The inner size of container is below:

-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high
