1.4923 Stainless Steel
Material X22CrMoV 12-1 (1)
X22CrMoV 12-1 Material
X22CrMoV 12-1

1.4923 Stainless Steel

Name: 1.4923 Stainless Steel
Brand: Huitai
SKU: 235246843

comparison of product parameters 1.4923 steel Equivalent Grades Chemical Compositions (%) The chemical composition of Material 1.4923 Steel is outlined in the following table. * Controlling the sulfur content between 0.015% and 0.030% can improve mechanical properties, so it is recommended and...

Send Inquiry

Product Introduction

comparison of product parameters

Material Grade	X22CrMoV 12-1
Germany W-Nr.	1.4923
Produce Standard	DIN EN 10269-2014 Nickel alloy stainless steel for fasteners with specified high and/or low temperature properties
Classification	Martensitic stainless steel
Features	Corrosion resistance
Tag	x22crmov12 1,x22crmov12 1 qt1,1.4923 material,material x22crmov12 1,1.4923 stainless steel
Introduction	1.4923 stainless steel is one of the high-temperature materials for manufacturing bolts, screws, studs and nuts. It is recommended that the maximum use temperature of fasteners is 600°C. After quenching, it has high strength and is magnetic.

1.4923 steel Equivalent Grades

GB	EN	JIS
1Cr11MoV	1.4923, X20CrMoV11-1	X20CrMoV12-1 X22CrMoV12-1

Chemical Compositions (%)

The chemical composition of Material 1.4923 Steel is outlined in the following table.

	C	Si	Mn	P	S	Ni	Cr	Mo	V
Min	0.18	-	0.40	-	-	0.30	11.0	0.80	0.25
Max	0.24	0.50	0.90	0.025	0.015*	0.80	12.5	1.20	0.35

* Controlling the sulfur content between 0.015% and 0.030% can improve mechanical properties, so it is recommended and can be negotiated when ordering and enquiry. For weldability, it is recommended to control the sulfur content between 0.008% and 0.030%.

Mechanical Properties

1.4923 Stainless Steel with the following mechanical properties:

Diameter
(mm)

Condition

Tensile strength

(σb MPa)

Yield Strength
(σs Mpa)

Elongation
(δ %)

(%)

Hardness
(HBW)

impact
(KV2 J)

≤302

d≤160**

+QT1

800~950

≥600

≥14

≥40

≥27

d≤160***

+QT2

900~1050

≥750

≥11

≥35

≥20

①+AT=solid solution annealing; +C=cold work hardening; +N=normalizing; +NT=normalizing and tempering; +P=precipitation hardening; +QT=quenching and tempering; WW=hot work hardening; +AC=spheroidizing annealing; +A=softening annealing; +S=treated for cold shearing
*Normal temperature mechanical properties generally applicable to delivery conditions for further processing
**Mechanical properties of steel at room temperature and delivery conditions of 20 degrees Celsius, complying with the basic safety requirements of 97/23/EC
***The mechanical properties of steel at room temperature and delivery conditions of 20 degrees Celsius do not comply with the basic safety requirements of 97/23/EC

Material 1.49232/X22CrMoV12-1 Steel Bar Photo

din 1.4923

Our Factory Workshops

Steel Making

Ingot Production

Forged Bars

Machinary

Sichuan Huitai Special Metals co.,ltd

As a traditional manufacturer of high-quality special metal materials, Huitai Special Metals has been committed to the research, development and production of special tool steel, die steel and alloy steel since 1997. Especially for High-strength alloy steel, Roll and Gear steel, we have very stable production process and quality assurance on it.

Advantages

Complete Production Line: Electric Power,Smelting,Forging,Heat Treatment,Machining, Physical&Chemical Test Center.

Competitive Grades

13Cr11Ni2W2MoV/961,1Cr12Ni3Mo2VN (J2,M152),1Cr12Ni2WMoVNb (851Nb),17-4PH,USU630,0Cr14Ni5Mo2Cu2Nb ( FV520B),789,XM25,C450,GTD450,S45000 etc

High-Quality Customized Services

Wide Range Specifications: Diameter 5-800mm; Thickness 1-800mm; Width 100-1800mm

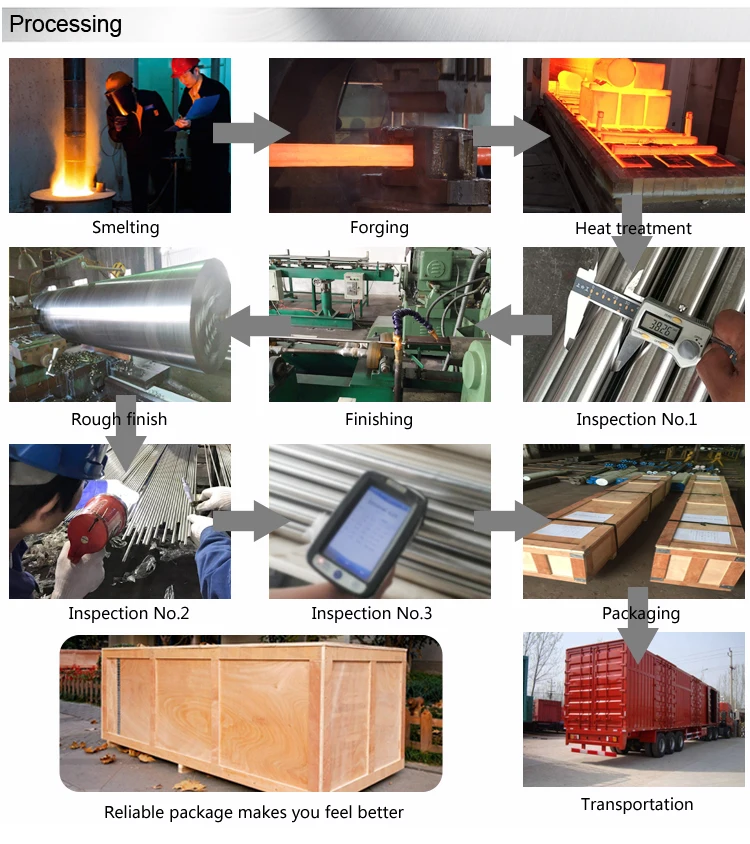

Production Process

x22crmov12-1 alloy 616

x22crmov12-1

Quality Control

We make sure that our produced Material 1.4923 Stainless Steel Bars are made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers.
