X2CrNiMoN22 5 3 Stainless Steel 1.4462 Material
X2CrNiMoN22 5 3 Stainless Steel 1.4462 Material
X2CrNiMoN22 5 3 Stainless Steel 1.4462 Material

1.4462 Material

X2CrNiMo22-5-3 Stainless Steel 1.4462 Material has the ability to withstand chloride environments and sulfide stress corrosion, and its strength is approximately twice the strength of standard austenitic stainless steel. This alloy can be successfully used as a replacement...

Send Inquiry

Product Introduction

Products Description

1.4462 Material has the ability to withstand chloride environments and sulfide stress corrosion, and its strength is approximately twice the strength of standard austenitic stainless steel. This alloy can be successfully used as a replacement for 300 series austenitic stainless steels when higher mechanical strength/lighter weight is required. 1.4462 duplex stainless steel is easy to weld with many standard arc welding equipment, but is not recommended for oxyacetylene block welding due to the potential for carburization of the weld metal.

Equivalent Grades of duplex 1.4462 material(X12CrNiMoN225) :
1. China GB-T standard: digital grade: S22253, new grade: 022Cr22Ni5Mo3N, old grade: 00Cr22Ni5Mo3N
2. American standard: ASTMA standard: S31803, UNS standard: F51
3. Japanese standard JIS standard: 329J3L, dp8
4. German DIN standard: 1.4462
5. European standard EN standard: X2CrNiMo22-5-3

Chemical Compositions

1.4462 x2crnimon22 5 3 Chemical Analysis

%	Ni	N	Cr	C	Mn	Si	P	S	Mo
min	4.50	0.08	21.0						2.50
max	6.50	0.20	23.0	0.03	2.00	1.00	0.030	0.020	3.50

Mechanical Properties

Tensile strength: σb≥795Mpa
Yield strength: σb≥550Mpa
Elongation: δ≥15%
Hardness ≤310 (HB)

Physical Properties:
①Density Density (20℃)/kg/dm3: 7.8
②Melting point/℃: 1420~1462
③Specific heat capacity (0~100℃)/kg/(kg.k): 0.5
④Thermal conductivity/w/(m.k)100℃-:19, ⑸Thermal conductivity/w/(m.k)500℃-: 23
⑥Linear expansion coefficient/(10-6/k)0~100℃: 13.7
⑦Linear expansion coefficient/(10-6/k)0~561℃: 14.7
⑧Resistivity (20℃)/(Ω.mm2/m): 0.88
⑨Directional elastic modulus (20℃)/GPa: 186

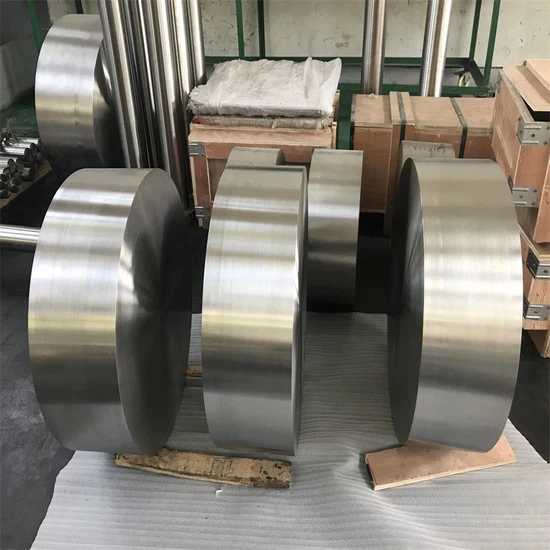

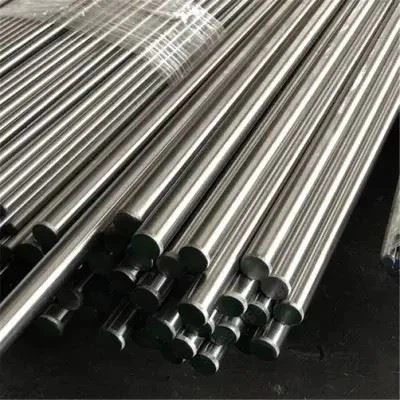

X2CrNiMoN22-5-3 Stainless Steel 1.4462 Material Photos

2Cr11NiMoNbVN heat-resistant stainless steel

Our Factory Workshops

Steel Making

Ingot Production

Forged Bars

Machinary

C276 Hastelloy Bar

Vacuum Induction Furnace

2-6 tons of vacuum induction furnace, leading steelmaking equipment to ensure high purity of X2CrNiMoN22 5 3 Stainless Steel duplex 1.4462 materials.

C276 Hastelloy Rods

Applications

1.4462 duplex 2205 has high corrosion resistance in acidic and chloride-containing media such as phosphoric acid and organic acids. In addition, this dual-phase steel is resistant to stress corrosion cracking and intergranular corrosion both in the as-delivered state and after welding.

Chemical processing industry

Oil and gas pipelines, pressure vessels, high-pressure storage tanks, high-pressure pipelines, heat exchangers

Sewage treatment system

Classifiers, bleaching equipment, storage and handling systems for the pulp and paper industry

High-strength mechanical components

Rotary shafts and press rollers of food processing equipment in high-strength and corrosion-resistant environments; blades and impellers of ships, etc. ·

Quality Control

We make sure that our produced 1.4462 Material are made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers.
