34CrNiMo6 Alloy Steel Round Bar
Type:Plate/Round bar/Flat bar
Delivery condition: Annealed black surface/Turned bright surface
34CrNiMo6 Alloy Steel Round Bar – Durable and Strong for Demanding Applications
If you are looking for a strong and durable material for your heavy-duty applications, then look no further than 34CrNiMo6 Alloy Steel Round Bar. Our product is manufactured using high-quality materials and advanced technologies, ensuring that it meets international standards of quality.
Our alloy steel round bar is a versatile product that can be used to make a wide range of industrial and mechanical components, such as gears, shafts, and axles. Thanks to its strength and durability, it is particularly suitable for heavy machinery, large structures, and demanding environments.
One of the main features of our 34CrNiMo6 Alloy Steel Round Bar is its excellent mechanical properties. It has a high tensile strength, meaning it can withstand large amounts of stress and weight. It also has a high fatigue limit, meaning it can endure repeated loads and cycles without cracking or breaking.
Another important characteristic of our alloy steel round bar is its excellent heat treatment properties. It can be hardened, tempered, or annealed to achieve specific mechanical properties and surface hardness. This makes it a versatile product that can be tailored to meet different requirements and specifications.
Our 34CrNiMo6 Alloy Steel Round Bar is also known for its corrosion resistance. It contains small amounts of chromium and nickel, which helps to protect the steel from rust and other forms of corrosion. This makes it a suitable product for outdoor and marine applications, where exposure to moisture and salt water can cause other metals to degrade and rust.
Apart from its mechanical and chemical properties, our 34CrNiMo6 Alloy Steel Round Bar is also easy to machine and process. It is available in a range of sizes and shapes, making it suitable for different machining and cutting processes. It can also be welded and joined using standard welding techniques, making it a versatile product that can be integrated into different mechanical systems.
In summary, our 34CrNiMo6 Alloy Steel Round Bar is a strong and durable material that is suitable for demanding applications in various industries. It has excellent mechanical, chemical, and heat treatment properties, as well as corrosion resistance and machinability. With our commitment to quality and customer satisfaction, you can be sure that you are getting a product that meets your expectations and requirements.
Contact us now to learn more about our 34CrNiMo6 Alloy Steel Round Bar and how it can benefit your business. We offer competitive pricing, fast delivery, and excellent customer service to ensure your satisfaction.
Products Description
34CrNiMo6 Steel is an important alloy engineering steel grade as per BS EN 10083-3:2006. 34CrNim06 steel has
high strength, high toughness and good hardenability. EN / DIN 34CrNiMo6 alloy steel has the stability of resistance to
overheating, but the white sensitivity of 34CrNiM06 is high. It also has the temper brittleness, so the weldability of
34CrNiMo6 material is poor. The steel 34CrNiMo6 needs the high temperature preheating before welding in order to
eliminate the stress after welding proces
Characteristics of DIN 34CrNiMo6 / 1.6582 Steel
34CrNiMo6 is a 1.8% nickel - chromium - molybdenum high hardenability high tensile steel - generally supplied hardened and tempered in the tensile range of 930 - 1080 Mpa (condition U) - (Rc 28 - 36).
Characterised by high strength and toughness in relatively large sections.
Pre hardened and tempered 4340 can be further surface hardened by flame or induction hardening and by nitriding.
34CrNiMo6 is used in most industry sectors for applications requiring higher tensile/yield strength than 4140 can provide.
High voltage bolts and nuts, crankshafts, cam shafts, transmission axles, torsion bars, drive shafts, pump shafts, worm shafts, conveyor rollers, stems, pins, tie rods, clutch discs. Large-mass dies for hot stamping. 34CrNiMo6 Steel is widely used in the aerospace industry for structural parts of flaps assembly, fuselage and landing gear, propeller plane axles.
Products parameters
| Country | Germany | USA |
| Standard | EN 10083-3 | ASTM A29 |
| Grade | 34CrNiMo6/1.6582 | 4337 |
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| 4337 | 0.3-0.4 | 0.2-0.35 | 0.6-0.8 | 0.035 | 0.04 | 0.7-0.9 | 0.2-0.3 | 1.65-2.0 |
| 34CrNiMo6 | 0.3-0.38 | 0.4 | 0.5-0.8 | 0.025 | 0.035 | 1.3-1.7 | 0.15-0.3 | 1.3-1.7 |
Mechanical Properties of EN/DIN 34CrNiM06 / 1.6582 Alloy Steel
|
1.6582 |
Value |
|
Mechanical properties |
|
|
Tensile strength Rm (MPa) |
>=980 |
|
Elongation A5 (%) |
>=13 |
|
Reduction of area Z (%) |
>=50 |
|
Yield point Re (R0,2) (MPa) |
>=830 |
|
Notched bar impact work KU2 (J) |
>=64 |
34CrNiM06 Alloy Round Bar Tolerance
| Diameter(mm) | Tolerance | ||
| Forged Steel Round Bar |
80-600 |
Black Surface:0~+5 | Rough Machined or Turned:0~+3 |
| 650-1200 | Black Surface:0~+15 | Rough Machined or Turned:0~+3 | |
| Hot Rolled Steel Round Bar | 16-310 | Black Surface:0~+1 | Peeled:H11 |
| Cold Drawn Steel Round Bar | 6-100 | Black Surface:H11 | Peeled:H11 |

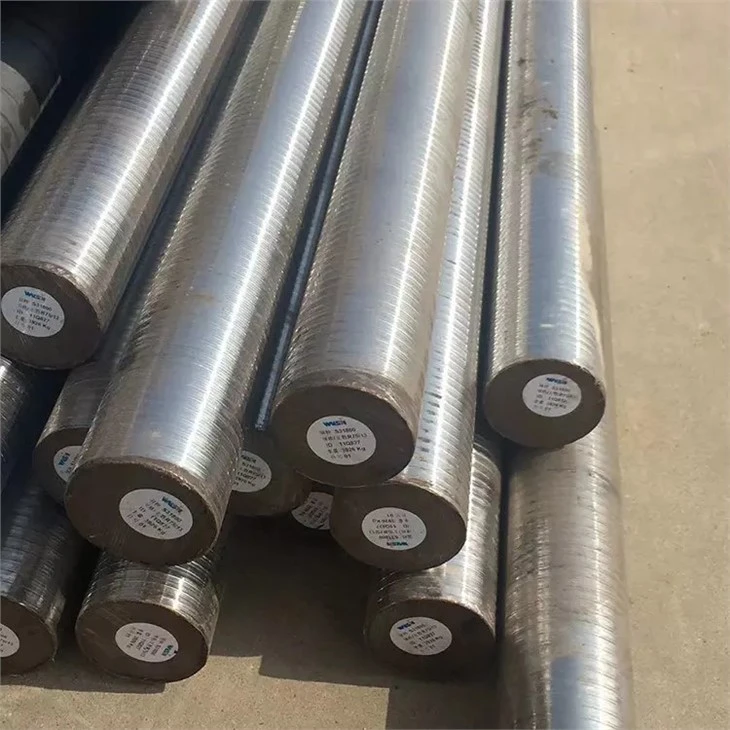

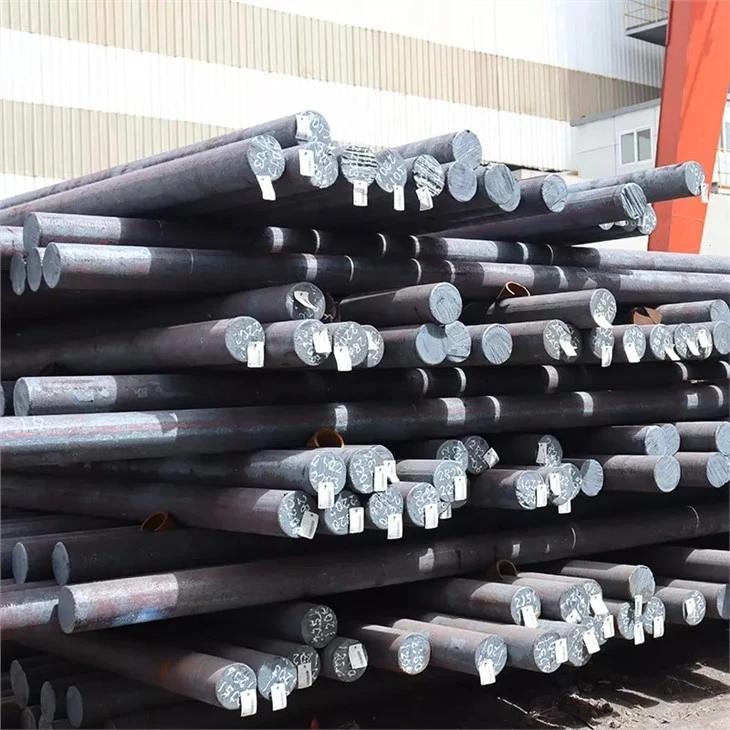

Product Picture
Our factory
Steel Making
Ingot Production
Forged Bars
Machinary
Annealing: Heat to 800℃ – 850 ℃ , hold until temperature is uniform throughout the section and cool in furnace.
Flame or Induction Hardening: 1.6582 steel can be further surface hardened by either the flame or induction hardening methods resulting in a case hardness in excess of Rc 50. Parts should be heated as quickly as possible to the austenitic temperature range (830℃ – 860℃ ) and required case depth followed by an immediate oil or water quench, depending upon hardness required, workpiece size/shape and quenching arrangements. Following quenching to hand warm, most components should be tempered between 150℃ – 200℃ to remove quenching stresses in the case. This will have little effect on case hardness.
Hardening: Heat to 830℃ – 860℃, hold until temperature is uniform throughout the section, soak for 10 – 15 minutes per 25 mm section, and quench in oil, water, or polymer as required.
*Temper immediately while still hand warm.
Nitriding: 1.6582 steel can also be successfully nitrided, giving a surface hardness of up to Rc 60. Nitriding is carried out at 490℃– 530℃, followed by slow cooling (no quench) reducing the problem of distortion. Parts can therefore be machined to near final size, leaving a grinding allowance only. The tensile strength of the core is usually not affected since the nitriding temperature range is generally below the original tempering temperature employed. N.B. Nickel is inert to the action of nitrogen and in general resists its diffusion into steel. This can result in lower case hardness or longer nitriding cycle times for steels containing nickel such as 1.6582 steel.
Stress Relieving: Heat to 600℃– 650 ℃, hold until temperature is uniform throughout the section, soak for 1 hour per 25 mm of section, and cool in still air.
Tempering: Re-heat to 450℃– 660℃as required, hold until temperature is uniform throughout the section, soak for 1 hour per 25 mm of section, and cool in still air. N.B. Tempering should be avoided if possible within the range 250℃ – 450℃ due to temper brittleness.
Notes on Heat Treatment: Heating temperatures, rate of heating, cooling and soaking times will vary due to factors such as work piece size/shape also furnace type employed, quenching medium and work piece transfer facilities etc.
|
Technological treatment processes |
Possibility of application |
Temperatura, °C |
|||
|
Plastic forming |
Forging |
+ |
850-1050 |
||
|
Rolling |
+ |
850-1180 |
|||
|
Heat treatment |
Heat Hardening |
Hardening |
+ |
830-860 |
|
|
Tempering |
+ |
540-680 |
|||
|
Annealing |
|
+ |
850-880 |
||
|
Annealing |
Softening |
+ |
680-720 |
||
Packing & Delivery
Packing & Delivery
- 1. Standard Seaworthy Packaging, Rectangular Shape Bundle, Covered With Tarpaulin, Containers or In Bulk, or upon customers' request.
- 2.Load in 20ft/40ft sea worth shipping container
Our Service
Payment terms:
-
T/T 30% deposit and the 70% balance after finished production.
-
Delivery condition:
-
For abundant stock, 7-10 days.
-
For customized products, 30-40 days
Why choose us?
- Our team of professionals is dedicated to ensuring that we deliver top-quality Alloy Steel Bars that meet our customers' unique needs.
- We believe that performance is not only expressed in the scale of operation and speed of development, but also reflected in the improvement of organizational capacity and innovation of management mode.
- Our manufacturing process follows strict quality control measures, ensuring that our Alloy Steel Bars are produced to the highest standards of quality and reliability.
- With the increasing competition in the industry, our company constantly standardized management to improve the professional quality and service level of employees.
- We use the latest technology and innovation to produce Alloy Steel Bars that meet the highest standards of quality and performance.
- Our company insists on independent research and development, and at the same time integrates with external industry, academia and research, to continuously improve research and development capabilities, introduce advanced 34CrNiMo6 Alloy Steel Round Bar research and development results and testing equipment, and occupy an important place in the 34CrNiMo6 Alloy Steel Round Bar field.
- Our Alloy Steel Bars come with a warranty and after-sales service to ensure customer satisfaction.
- We constantly strengthen the standardized and scientific management to ensure the standardization of the whole process link from raw material supply, manufacturing, sales and customer service, thus ensuring the stability of product quality.
- Our Alloy Steel Bars deliver outstanding performance and are suitable for various applications.
- We implement a branded market strategy with the tenet of 'leading technology, pragmatic innovation, and thoughtful service'. And with a complete marketing system and reliable quality, our products have a very high market share, and they are also widely recognized by many users.
